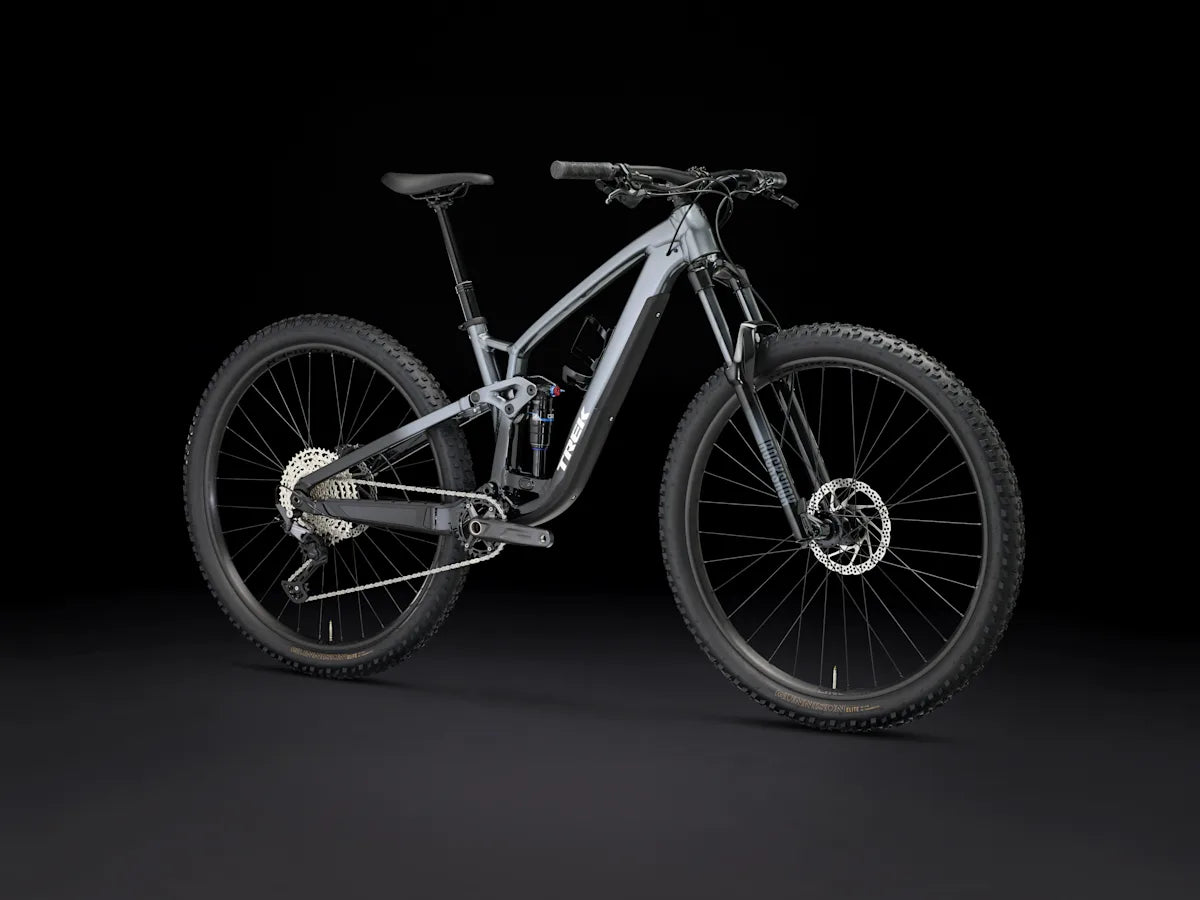

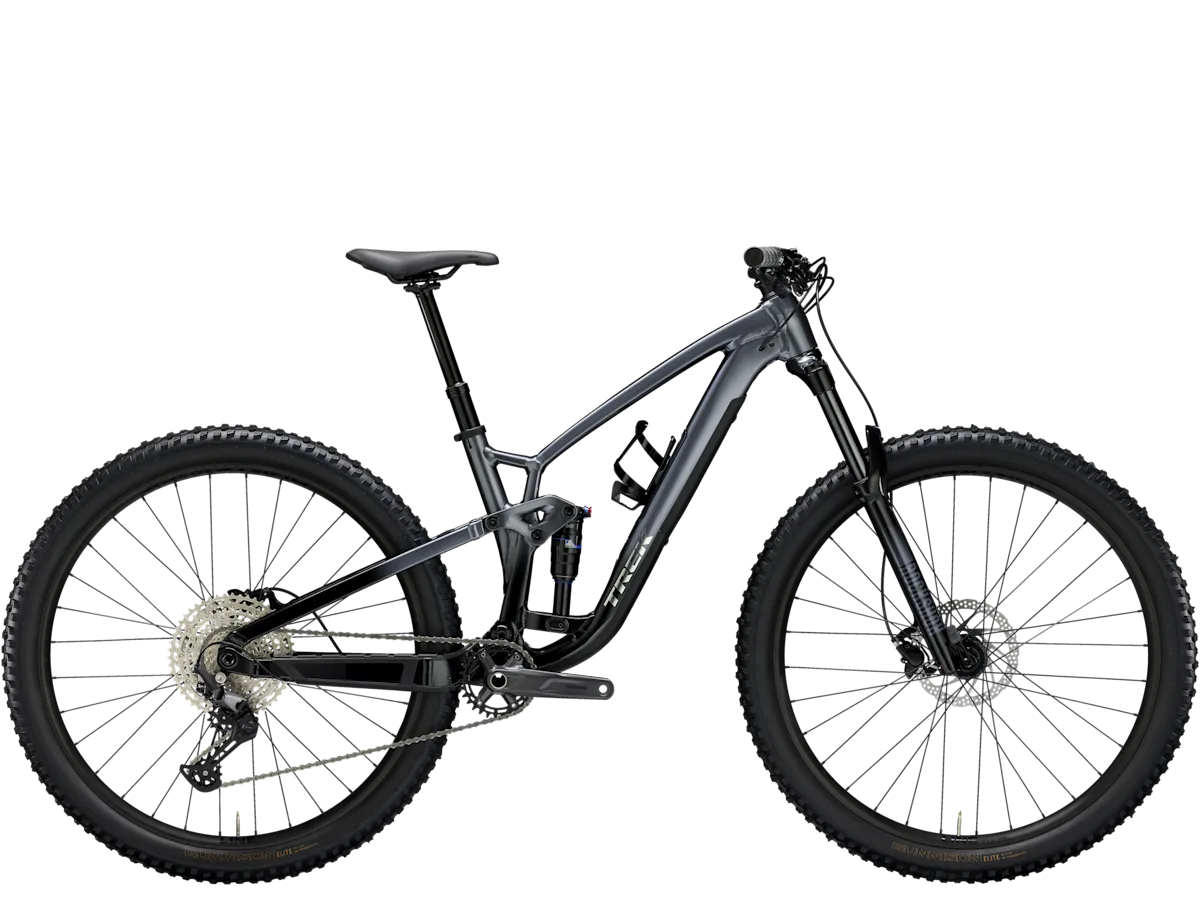

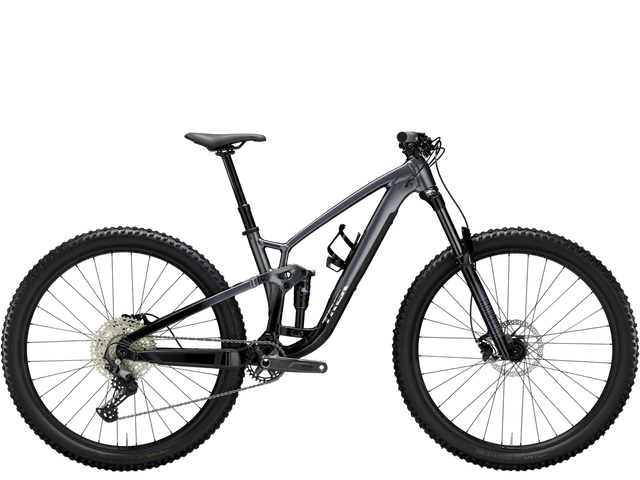

Trek 2025 Fuel Ex5 29" Gen 6 - Galactic Grey - Medium
Trek 2025 Fuel Ex5 29" Gen 6 - Galactic Grey - Medium is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at 24 Main St
Local Delivery Available
Local Delivery Available
Yarra Valley Cycles offer Local delivery within 20km. Some Fees apply.
Postage & Shipping - Free on "most" small parcel orders over $200
Postage & Shipping - Free on "most" small parcel orders over $200
YVC offers Free Shipping on most small items online when your spend over $200. Large & Bulky items may attract shipping fee. Calculated at Checkout.
Trek 2025 Fuel Ex5 29" Gen 6 - Galactic Grey - Medium is backordered and will ship as soon as it is back in stock.
Description
Description
The Fuel EX 5 is a full-suspension trail bike that's ready to handle it all. With 150 mm front and 140 mm rear trail-taming suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.
| Frame | Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
|---|---|
| *Fork |
Size: XS , S RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 140 mm travel |
|
Size: XS , S RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 140 mm travel |
|
|
Size: S , M , ML , L , XL , XXL RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel |
|
|
Size: M , ML , L , XL RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |
|

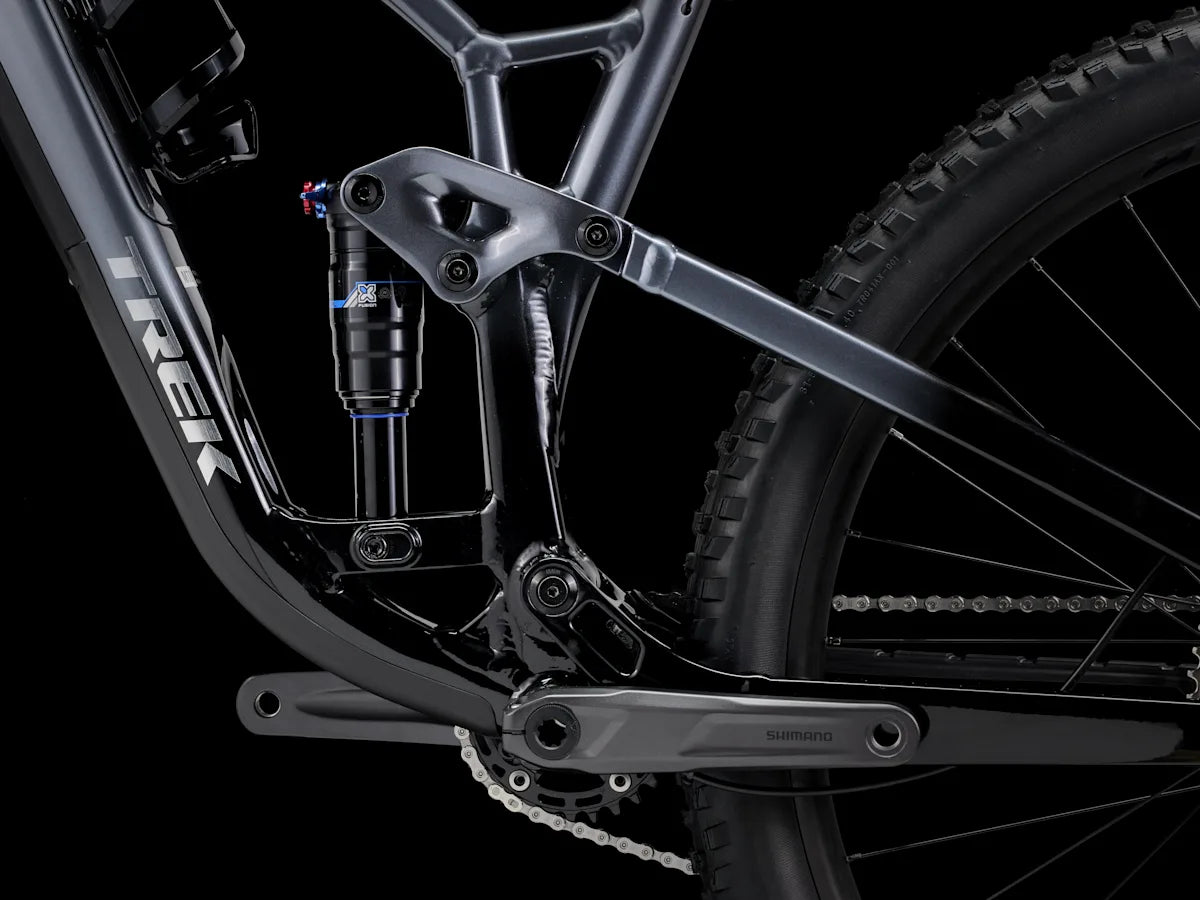

| Shock | X-Fusion Pro 2, 2-position damper, 185 mm x 55 mm |
| Max compatible fork travel | 160 mm |
| Hub front | Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
| *Tyre |
Size: XS , S Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" |
|
Size: S , M , ML , L , XL , XXL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
|
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12-speed |
|---|---|
| Rear derailleur | Shimano Deore M6100, long cage |
| Crank | Shimano MT512, 30T ring, 55 mm chain line, 170 mm length |
| Bottom bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. chainring size | 1x: 34T round, 32T oval, min 28T |
| *Saddle |
Size: XS , S , M , ML , L , XL , XXL Bontrager Arvada, steel rails, 138 mm width |
|---|---|
|
Size: XS , S , M , ML , L , XL Bontrager Verse Short, stainless steel rails |
|
| *Seatpost |
Size: XS , S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length |
|
Size: M , ML TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length |
|
|
Size: L , XL , XXL TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length |
|
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem |
Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
|
Size: M , ML , L , XL , XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
|
| Head set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Brake | Shimano hydraulic disc, MT201 lever, MT200 calliper |
| Brake rotor | Shimano RT56, 6-bolt, 180 mm |
| Rotor size | Max brake rotor sizes – Frame: 203 mm, Fork: see fork manufacturer |
