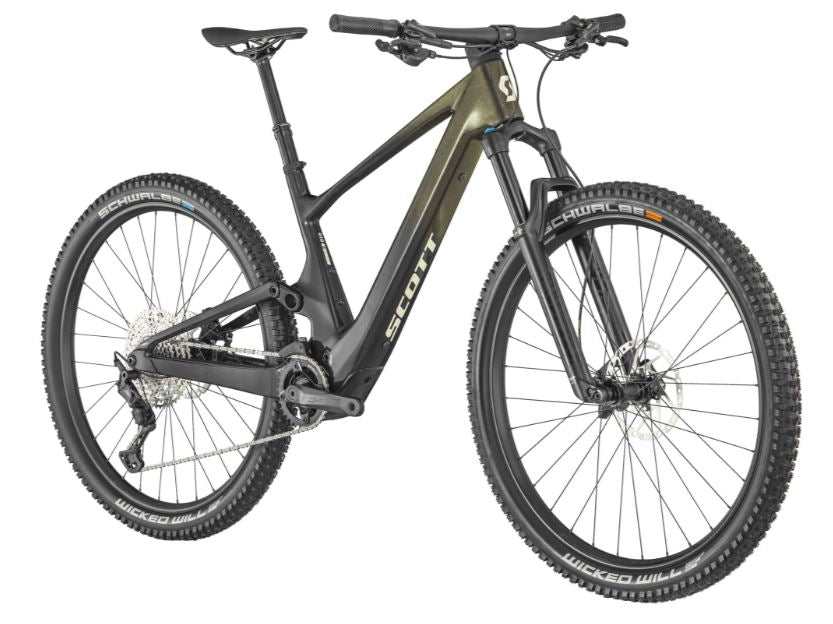

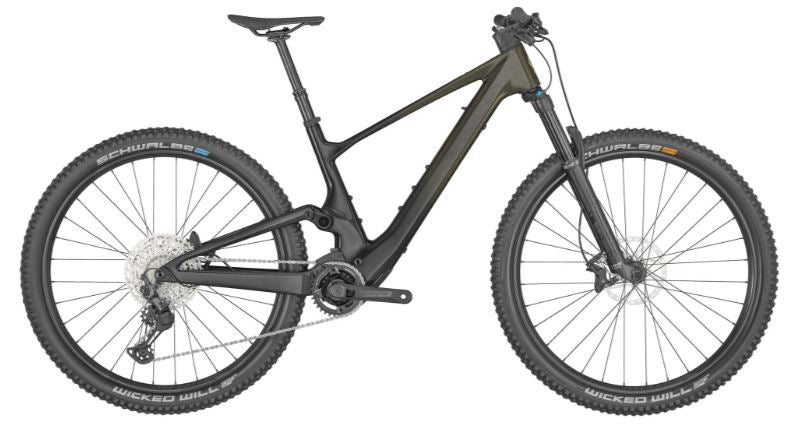

Scott 2023 lumen eride 910 - Olive / Black

An E-MTB with the weight of an MTB, only 17.6kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino’s speed.

Frame
Lumen eRIDE Carbon HMX
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
Travel
Front: 130mm / Rear: 130mm
Fork
FOX 34 Float Rhythm Air Grip
3-Modes / Kabolt 15x110mm axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 130mm travel
Rear Shock
FOX NUDE 5T EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Custom large Air volume / DPS / Reb. Adj.
Travel 130-90-Lockout / T165X45mm
Remote System
SCOTT TwinLoc Suspension System
3 modes front and rear / integ. Grip clamp
Drive Unit
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery
TQ Internal 360Wh
Display
TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app
Charger
TQ 100-240V-4A
Rear Derailleur
Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed
Shifters
Shimano Deore SL-M6100-IR / Rapidfire Plus
Ispec EV clamp
Crankset
FSA Alloy crankset / 175mm / 34T
Chainguide
e*thirteen / e*spec Slider
Chainring
Scott custom spider / FSA 12Speed 34T chainring
Chain
Shimano CN-M6100
Cassette
Shimano CS-M6100 / 10-51 T
Brakes
Shimano Deore M6120 4 Piston Disc
Rotor
Front: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm
Handlebar
Syncros Fraser 2.0 DC Alloy 6061 D.B.
mini Rise / back sweep 8° / 760mm
Syncros Performance XC lock-on grips
H'stem
Syncros DC 2.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8"
Seatpost
Syncros Duncan Dropper Post 2.0
31.6mm / S & M size 125mm / L size 150mm / XL size 170mm
Seat
Syncros Tofino 1.5 Regular, Titanium rails
Headset
Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
Hub (Front)
Formula CL-811 / 15x110mm
Hub (Rear)
Formula CL-148M / 12x148mm / Micro Spline
Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools
Spokes
Stainless Black 15G / 1.8mm
Rims
Syncros X-30SE / 32H / 30mm
Tubeless ready
Front Tire
Schwalbe Wicked Will 29x2.4" EVO
Super Race / TLE / 67EPI / Addix Speed Soft
Rear Tire
Schwalbe Wicked Will 29x2.4" EVO
Super Race / TLE / 67EPI / Addix Speed Grip
Approx weights in KG
17.6 (Tubeless setup)
