Norco 2027 - Torrent Dh Frame Kit - Including Vivid Air Shock - Blue

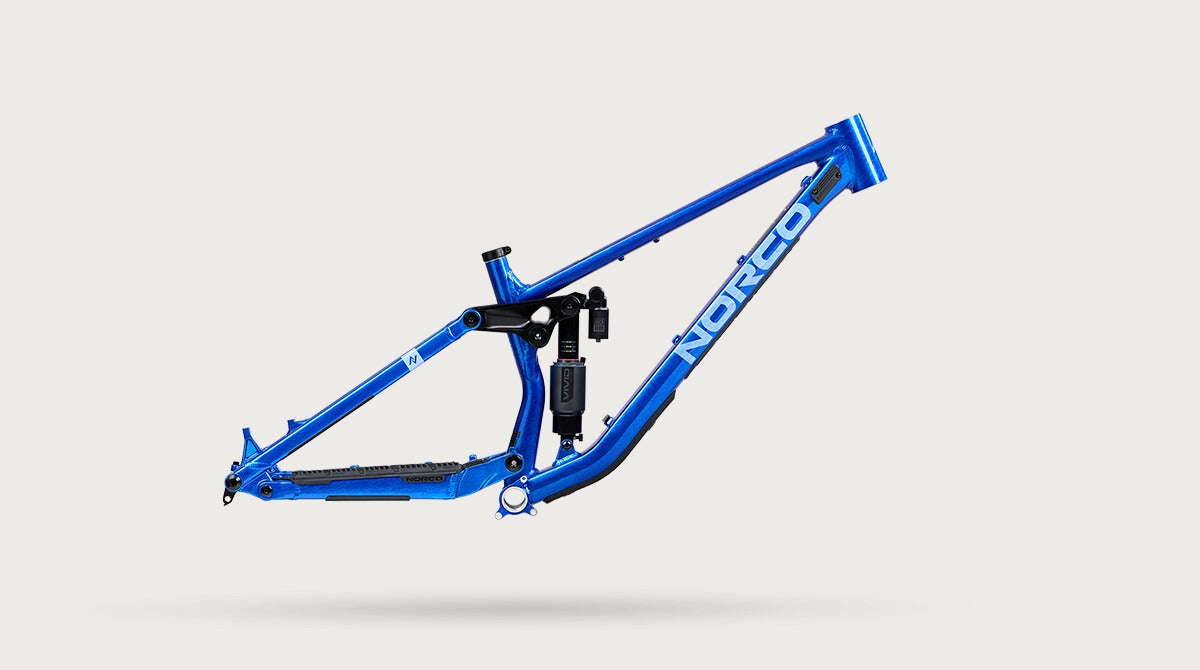

Norco Torrent DH A Frame Kit – Downhill MTB Frameset

The Norco Torrent DH A Frame Kit is a tough aluminium downhill platform built for racing, bike park laps and shuttle days. With 200mm of VPS suspension travel, mixed-wheel geometry and Ride Aligned™ sizing, it’s an ideal foundation for a custom downhill bike build.

Key Features

• Aluminium downhill frame
• 200mm rear suspension travel
• RockShox Vivid Air Base rear shock included
• Shock Size: 225 x 75mm
• Mixed Wheel: 29” front / 27.5” rear
• Rear wheel size adjustable frame design
• Ride Aligned™ size-specific geometry
• UDH compatible
• Designed around a 200mm dual crown fork
• ISCG-05 chain guide compatible

Frame & Build Requirements

• Bottom Bracket: BSA Threaded
• BB Shell Width: 83mm DH standard
• Rear Hub Spacing: 12 x 148mm Boost
• Rear Axle: 12mm thru axle
• Headset: ZS56/28.6 | ZS56/40
• Headset Type: Zero Stack, tapered
• Seatpost Diameter: 31.6mm
• Seat Clamp: 34.9mm
• Rear Shock: 225 x 75mm
• Recommended Rear Wheel: 27.5”
• Front Wheel: 29”
• UDH Rear Derailleur Hanger
• ISCG-05 Chain Guide Mount

Bearing Requirements

• Frame uses sealed cartridge pivot bearings throughout the VPS suspension system
• Headset requires sealed ZS56 upper and lower headset bearings/cups
• Individual suspension pivot bearing sizes should be matched to the Norco Torrent DH frame service/assembler document when replacing bearings

A simple, durable and highly capable downhill frameset designed for riders wanting to build a custom DH bike with modern, easily sourced component standards.
