Forbidden 2027 Druid E T4 Complete Mx 800w - Sandstorm | M2

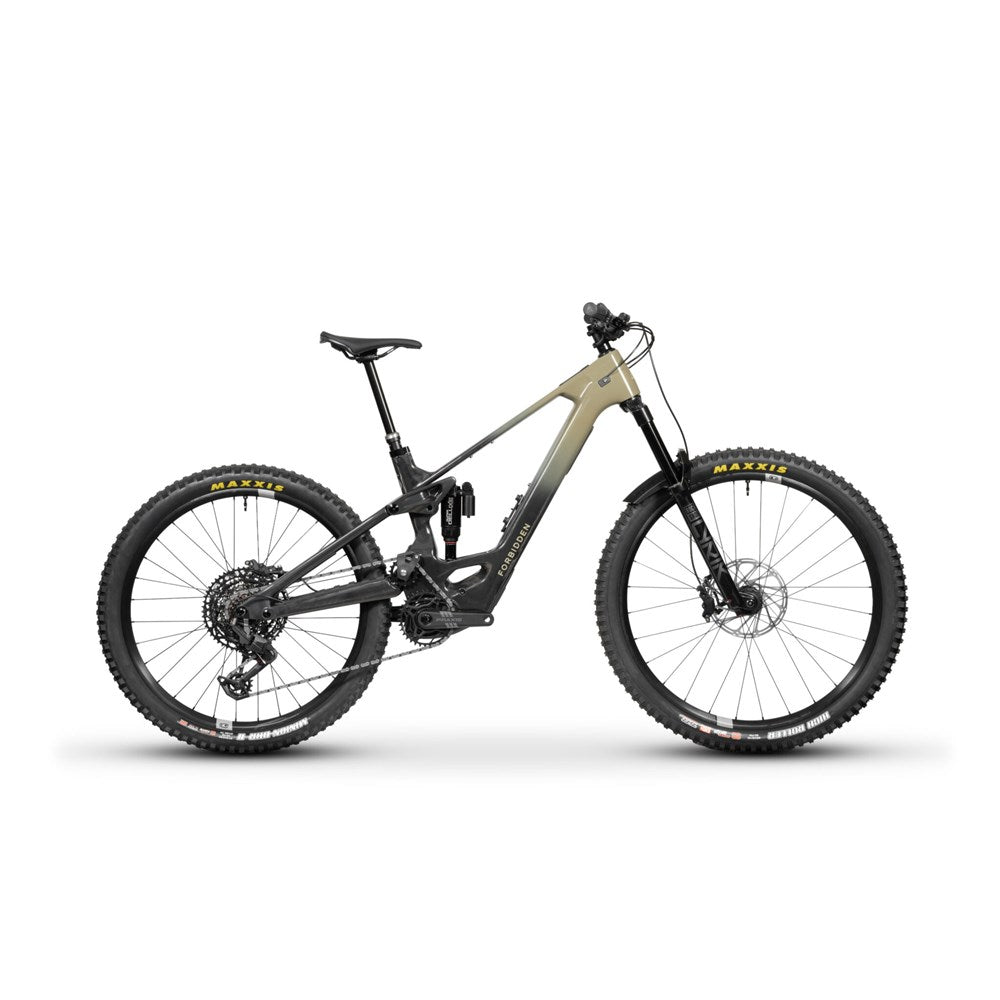

Forbidden Druid E T4, Sandstorm

The Druid E T4 brings together a full-carbon chassis, 150mm of rear travel and a 160mm RockShox Lyrik fork for technical trail riding. Its Trifecta V3 high-pivot four-bar suspension and One Ride geometry work with a mixed-wheel layout: a 29-inch front wheel for rolling through rocks and roots, paired with a 27.5-inch rear wheel for manoeuvrability through tight corners.

This Sandstorm build combines the Avinox M2 drive system and an 800Wh battery with SRAM Eagle 70 mechanical T-Type shifting. Set out for a winding trail loop, lower the saddle for the descent and use the motor assistance for the climb back. RockShox suspension, SRAM DB4 brakes and a size-specific TranzX dropper post complete a practical build for demanding trail days.

Specifications

• Frame: Druid E full carbon, high-modulus carbon fibre, Trifecta V3 high-pivot four-bar suspension, One Ride geometry and Enduro Max bearings.
• Rear travel: 150mm.
• Fork: RockShox Lyrik, 160mm travel, Delta RC damper, DebonAir+ spring, low-speed rebound and compression adjustment, 44mm offset, Maxle Stealth thru-axle.
• Rear shock: RockShox Super Deluxe, LinearXL, rebound adjustment, bearing-adapter eyelets, 210 x 55mm.
• Motor: Avinox M2.
• Battery: Avinox integrated lithium-ion, 800Wh.
• Display and controls: Avinox 2-inch OLED touchscreen display and wireless left/right handlebar controllers.
• Wheel configuration: MX, 29-inch front / 27.5-inch rear.
• Shifter: SRAM Eagle 70, single-click, MMX clamp.
• Rear derailleur: SRAM Eagle 70, hangerless interface and replaceable skid plates.
• Cassette: SRAM XS-1270, 12-speed, 10–52T.
• Chain: SRAM Eagle 70 T-Type, 12-speed.
• Cranks: Praxis alloy Type 7, 150mm, SRAM 34T chainring, 55mm chainline.
• Brakes: SRAM DB4 Base front and rear, reach adjustment, organic pads.
• Rotors: SRAM Centerline, six-bolt.
• Rims: Crankbrothers Alloy 1.0, 31.5mm internal width, tubeless ready.
• Hubs: Crankbrothers Synthesis, 110 x 15mm front / 148 x 12mm rear, HG driver, six-bolt.
• Spokes: Sapim Race, stainless steel, brass nipples.
• Front tyre: Maxxis High Roller 3, 29 x 2.4, 3C MaxxGrip, EXO+ casing, tubeless ready.
• Rear tyre: Maxxis DHR II, 27.5 x 2.5, 3C MaxxTerra, DoubleDown casing, tubeless ready.
• Handlebar: Forbidden Alloy, 800mm wide, 35mm clamp; 22.5mm rise on S1–S2 and 38mm rise on S3–S4, 9-degree backsweep and 5-degree upsweep.
• Stem: Forbidden, 40mm length, 35mm clamp.
• Dropper post: TranzX Reverse, 31.6mm; S1: 160mm, S2: 180mm, S3: 210mm, S4: 240mm travel.
• Dropper remote: TranzX GLS, MatchMaker X integrated.
• Saddle: Forbidden, 143mm, Atmos shaping, chromoly rails.
• Headset: FSA Orbit ZS, ZS44/ZS56, sealed cartridge bearings.
• Grips: Forbidden, 128mm, single-sided lock-on.
• Seatpost clamp: Forbidden CNC 7075 aluminium, 34.9mm.
• Chain guide: Forbidden Race Guide.
• Bottom bracket interface: Avinox ISIS.
• Charger: Avinox 168W.
• Additional equipment: RideWrap frame protection film in high-wear areas and 200ml sealant.
• Pedals: Not included.

Component specifications are based on Forbidden’s current Druid E Tier 4 specification page, which is not explicitly labelled by model year. Specifications are subject to change; confirm Australian-delivered 2027 equipment with Yarra Valley Cycles before ordering.
