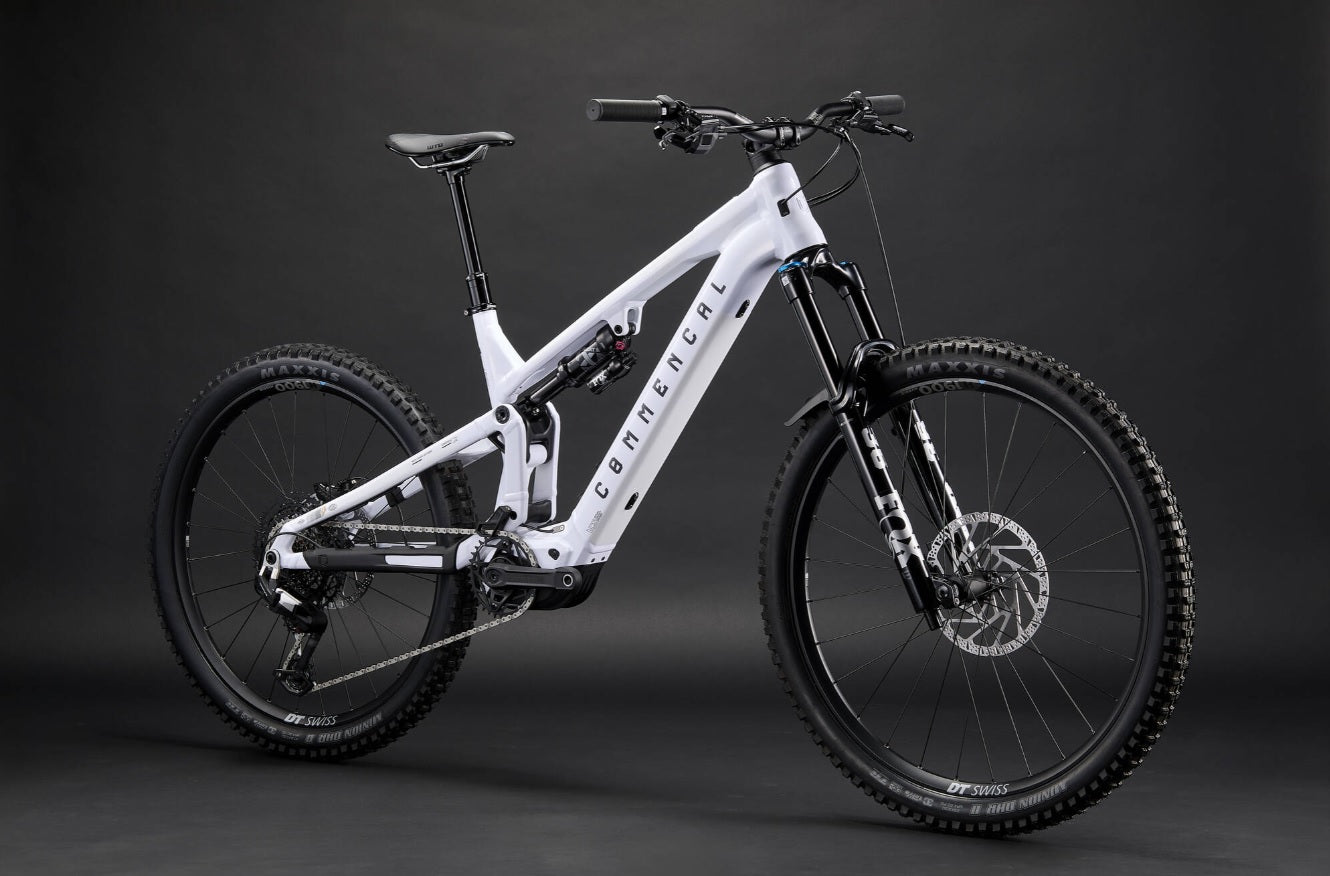

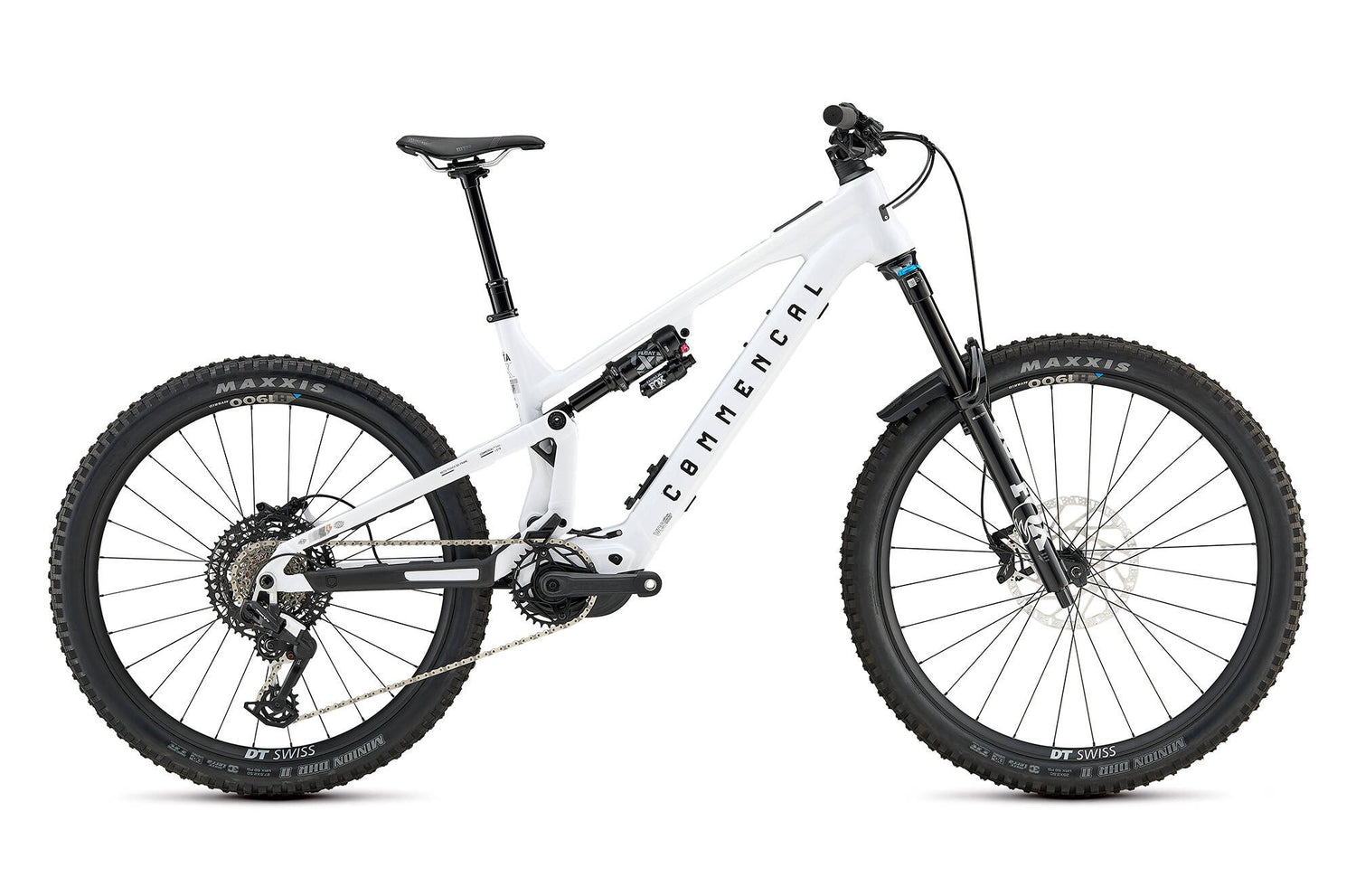

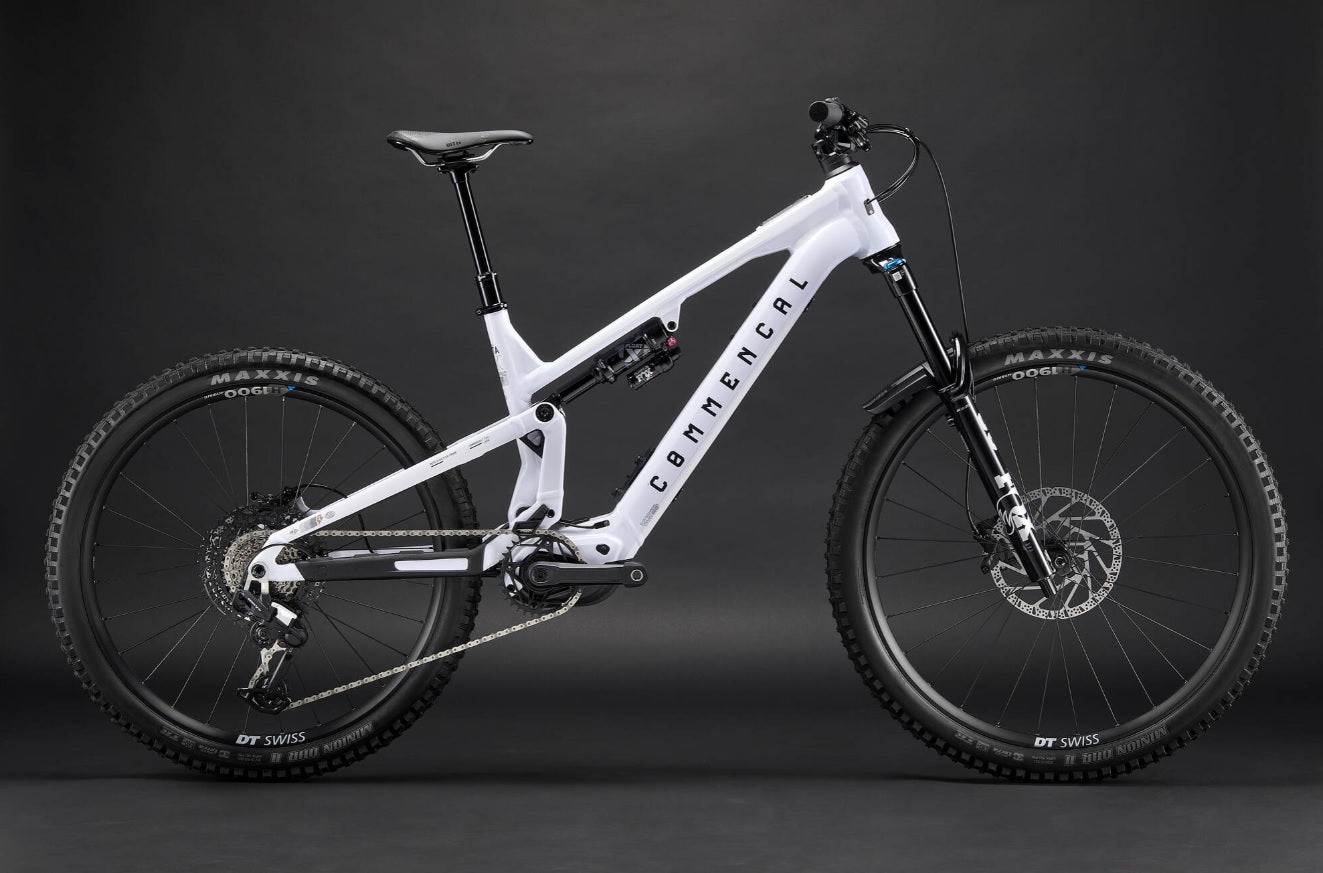

Commencal 2027 Meta Power Sx Avinox Essential - Pure White

The META POWER SX AVINOX ESSENTIAL offers all the reliability needed to tackle trail after trail.

• The FOX 36 Performance fork offers the Grip cartridge with a reliable e-bike chassis. It’s easy to tune and performs well in all conditions. A FOX Float X Performance shock completes the suspension. Dynamic and comfortable, its lockout lever makes climbing easier.

• TRP DH-R EVO PRO 4-piston b rakes are progressive, consistent, and easy to use.

• The DT SWISS H 1900 wheels are sturdy and hardwearing. Hand-built in Switzerland.

• We chose the 12-speed SRAM GX Eagle T-Type drivetrain as it’s highly versatile and offers a 520% gear range.

specifications

• Frame

META POWER SX AVINOX, 160 mm travel

29''-27.5'', Alloy 6066, triple butted tubes, T4, T6

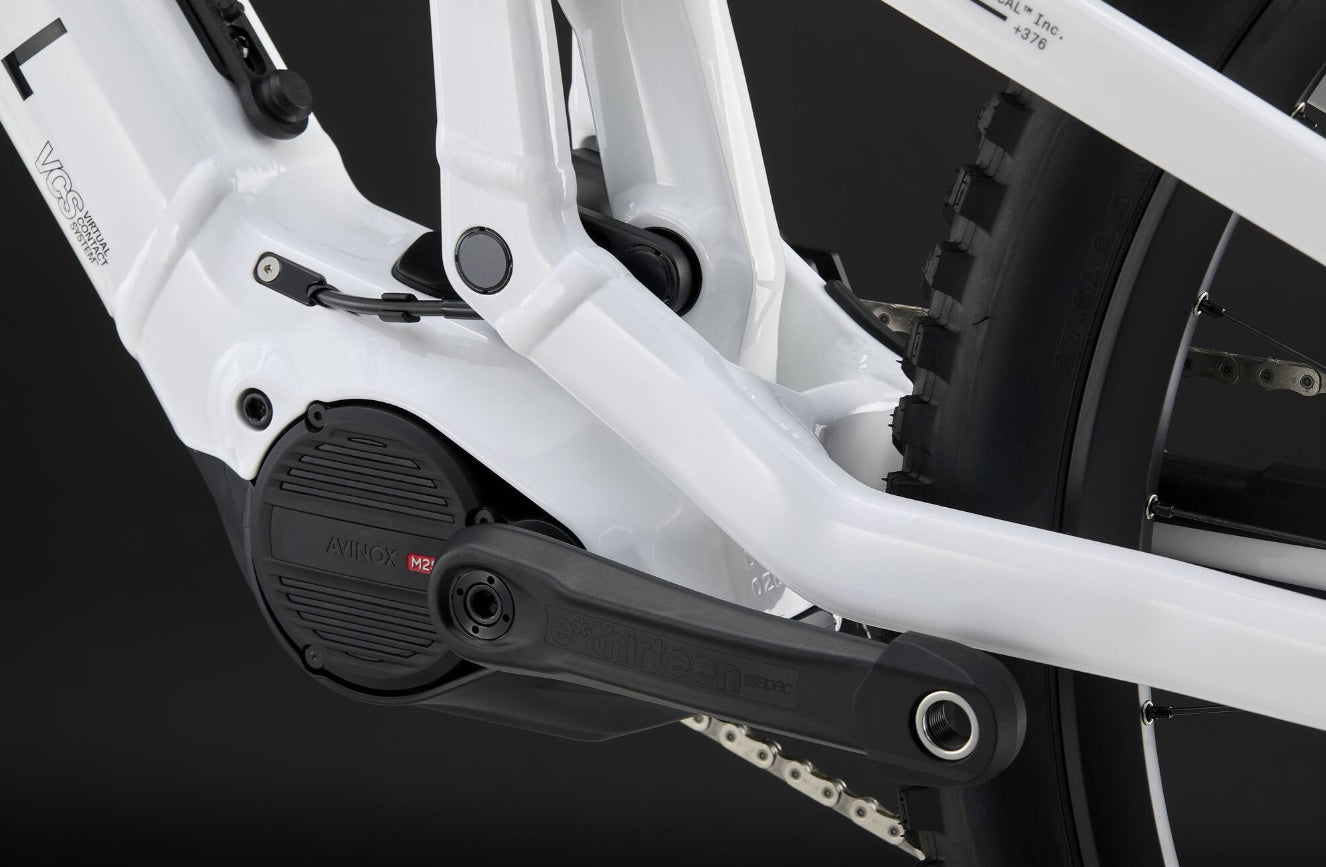

• Motor

AVINOX M2S

150 Nm peak torque with a 1,300 W boost mode, and 130 Nm / 1300 W in normal operation

• Battery

AVINOX

600 Wh on S, 800 Wh on M / L / XL, Fully integrated main battery

AVINOX 508w Fast Battery charger

• Display

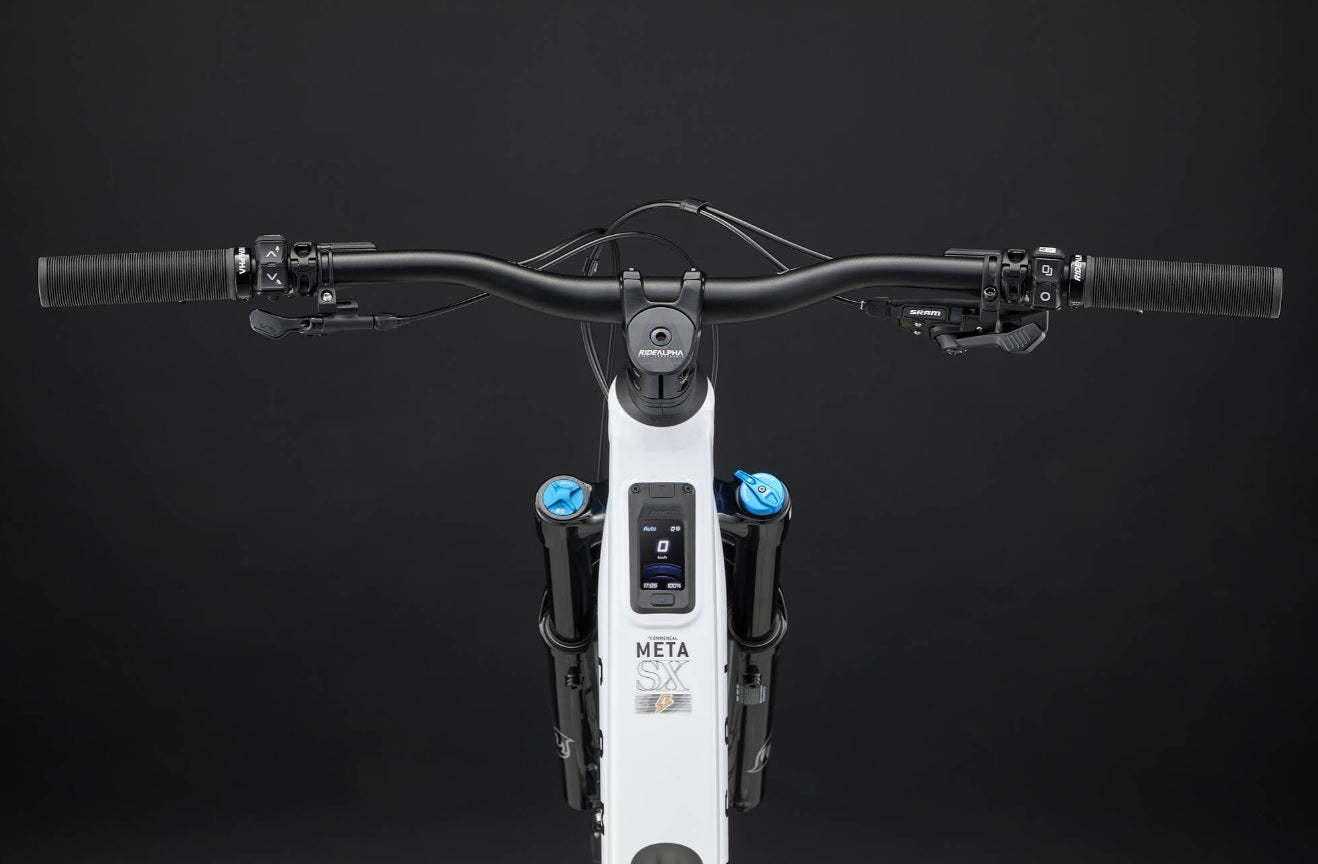

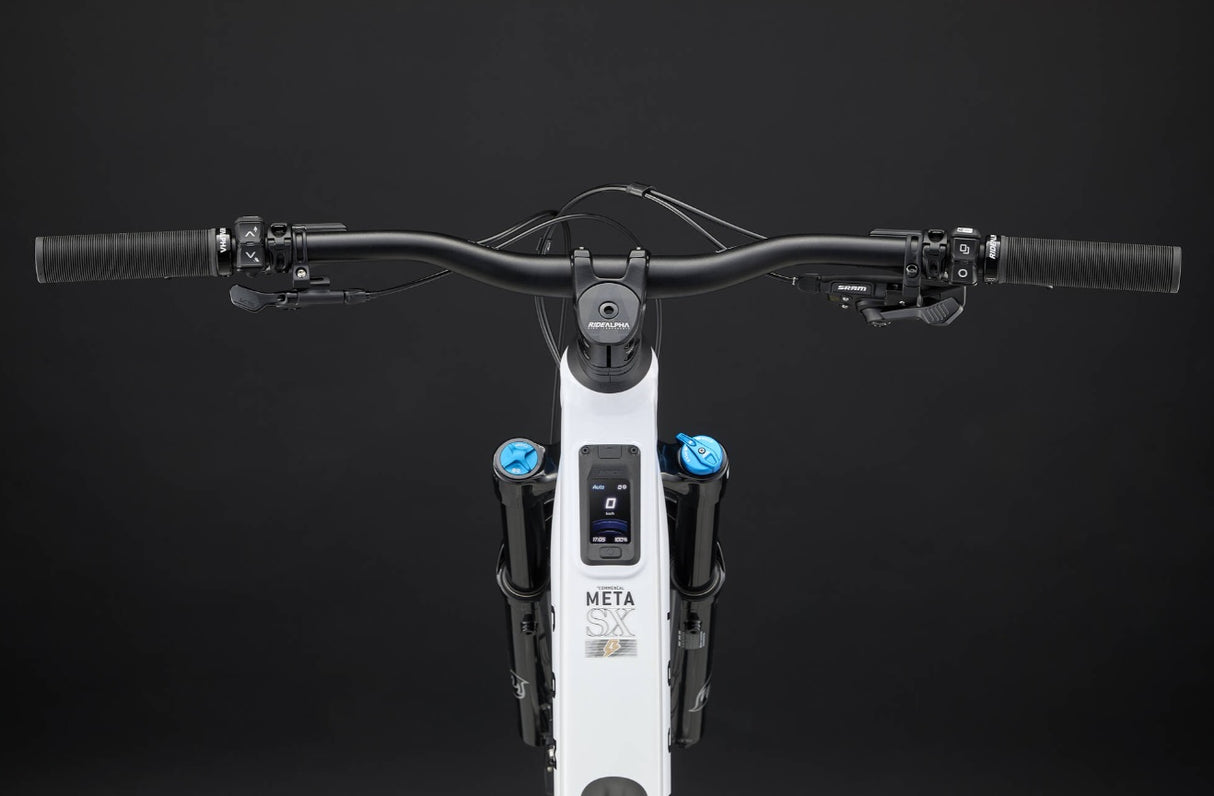

AVINOX DP100 : Integrated and colored touchscreen providing a large range of information : speed, ride mode, battery range, charge level, fitness data, elevation gain, altitude and many more. It also features a USB-C port, GPS sensor, barometer, compass, 4G connection and even a theft alarm system.

Switch: AVINOX BC100, Wireless controller.

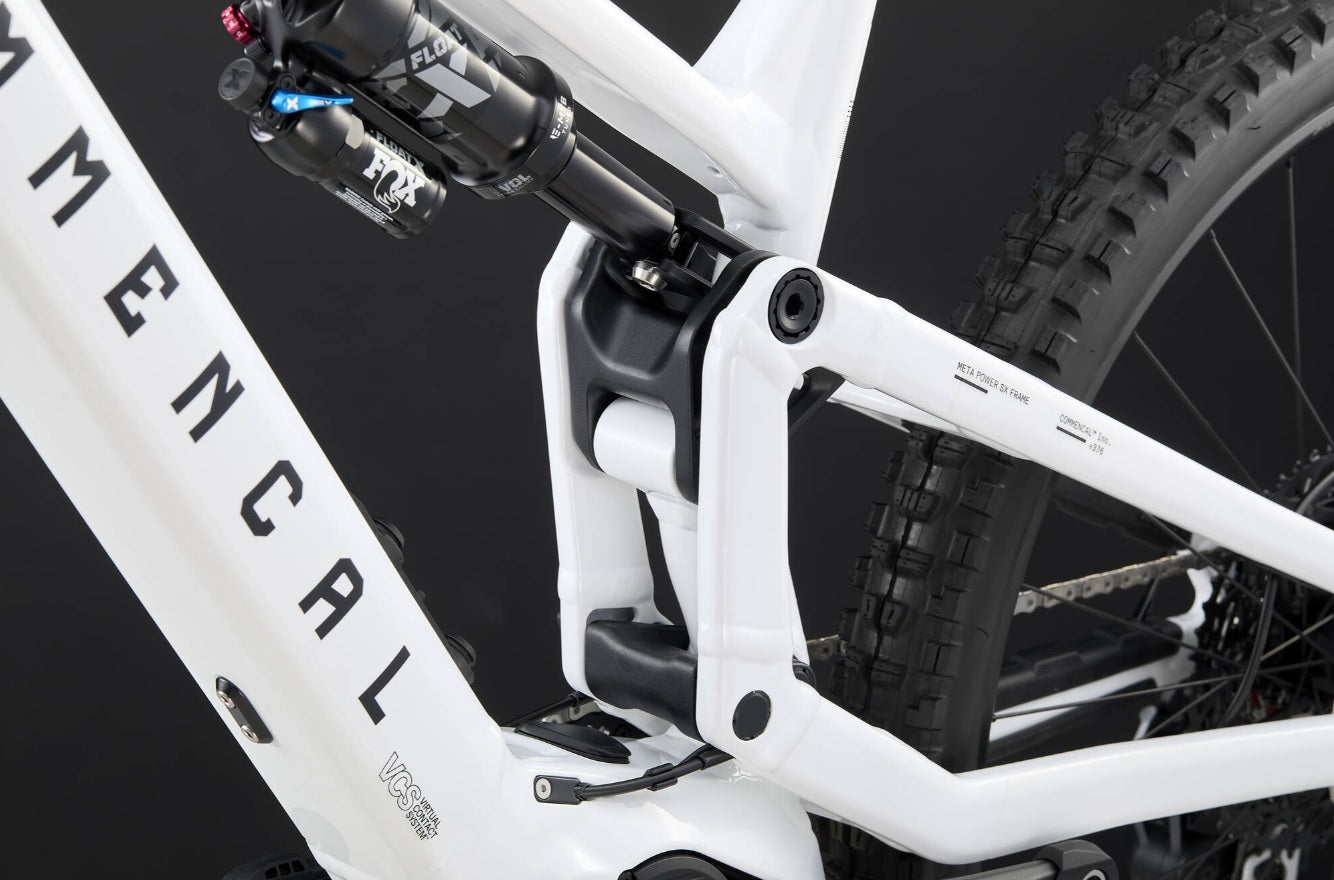

• Shock

FOX Float X Performance

230 x 60 mm, 2-postion (open/firm) lever, LSR, 0.4ci Spacers

• Fork

FOX 36 Performance 160 mm

29", Grip damper, LSR, Boost (15 x 110 mm), 44 mm offset

• Headset

ACROS ZS56 / ZS66

Alloy cups, stainless steel & sealed bearings

• Stem

RIDE ALPHA 40

40 mm extension, 31.8 mm

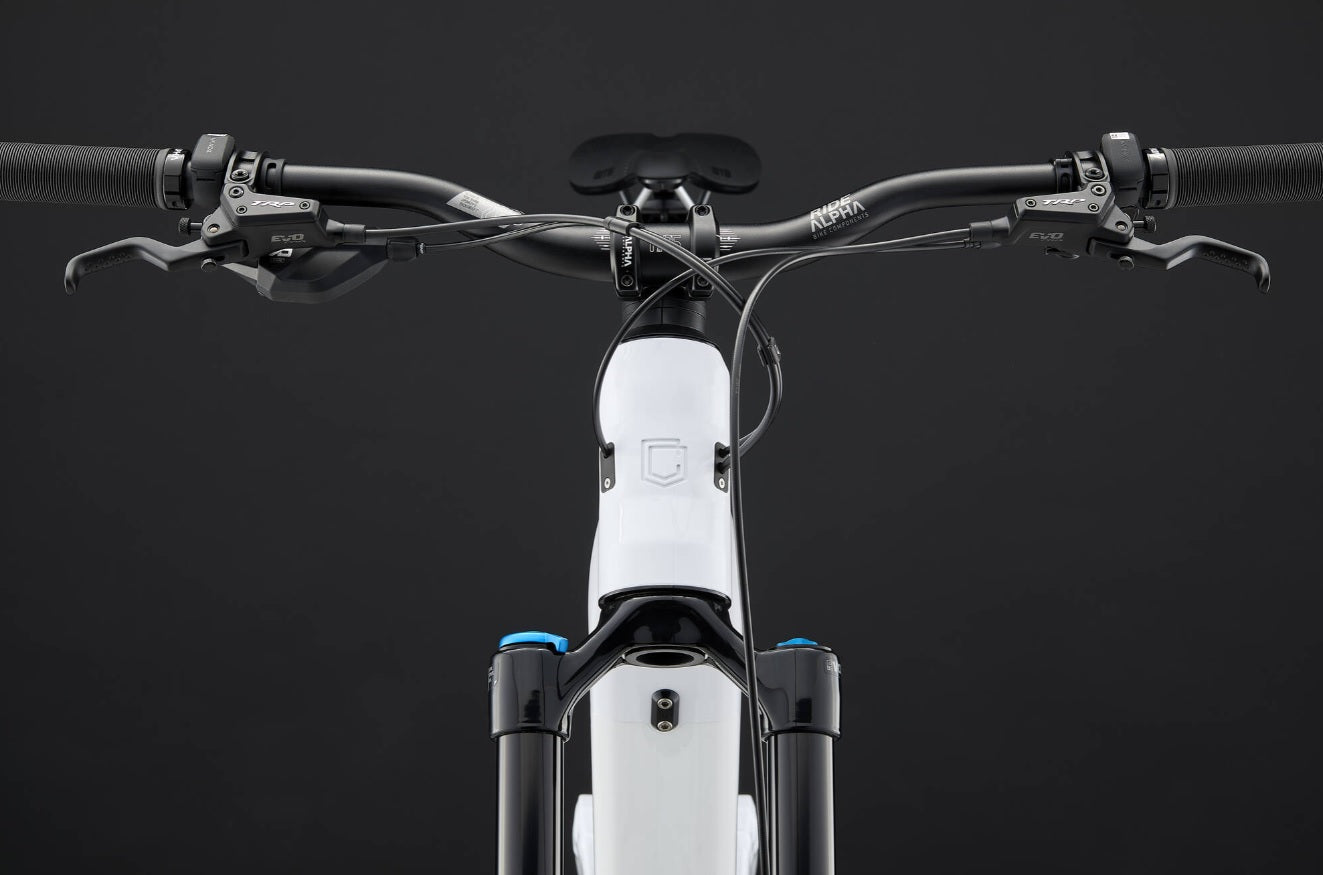

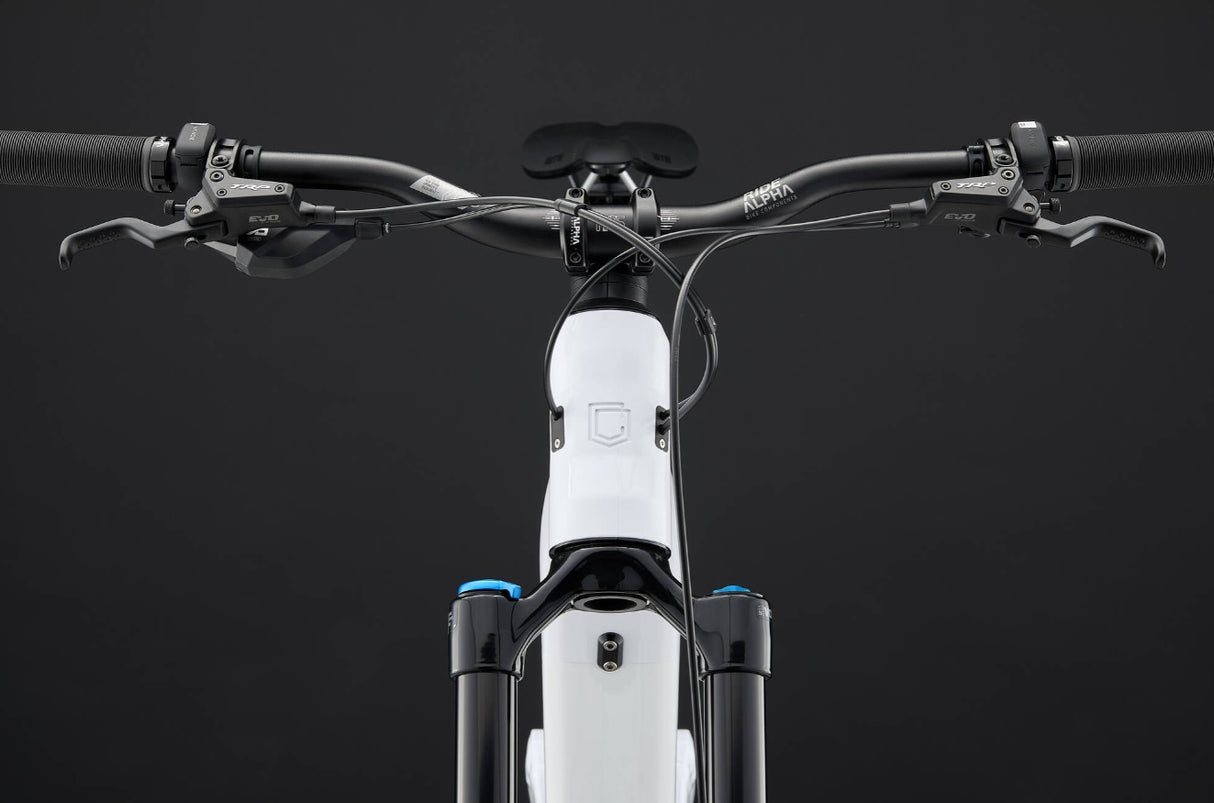

• Handlebar

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL

31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

• Grips

RIDE ALPHA Mushroom

Soft compound, single clamp, black

• Brakes

TRP DH-R EVO PRO, 4 pistons

Rotors: TRP RS06E, 6-bolt, 220 mm front / 203 mm rear

• Shifters

SRAM EAGLE 90

12s

• Chain guide

RIDE ALPHA

32t-34t

• Rear derailleur

SRAM EAGLE 90 T-TYPE

12s

• Crankset

E13 HELIX CORE, 155 mm crank arms

Chainring: SRAM CR T-TYPE, 34t, BCD 104

• Chain

SRAM GX EAGLE T-TYPE

12s, Flat Top

• Cassette

SRAM XS 1270 T-TYPE

12s, 10-52t

• Rims

DT SWISS H 1900

Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

• Hubs

DT SWISS 370 Hybrid

Rear: 28h, sealed bearings, 12 x 148 mm, Hyperglide - Front: 28h, sealed bearings, 15 x 110 mm

• Spokes/nipples

DT SWISS Hybrid 1

Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black

• Tyres

Rear: MAXXIS MINION DHRII 27.5'' - Front: MAXXIS MINION DHRII 29'

Rear: 27.5x2.50WT 3C MaxxTerra / EXO+ Casing / TR - Front: 29x2.50WT 3C MaxxTerra / EXO+ Casing / TR

• Seat post

KS Ragei

34.9 mm, 150 mm on S, 175 mm on M and 190 mm on L/XL

• Saddle

WTB SOLANO

142 x 240 mm, Medium

• Weight

24,65 kg / 54.3 lbs

Minimum weight for M size, without pedals. Weight may differ slightly due to manufacturing tolerances.

• Pedals included

CRANKBROTHERS Stamp 1

• Colour

Pure White

Shiny Finish

• Accessories

RideWrap Lotus Pro™ protection film applied, motor protector, chain stay protector, seat stay protector, fork fender, FIDLOCK base.
