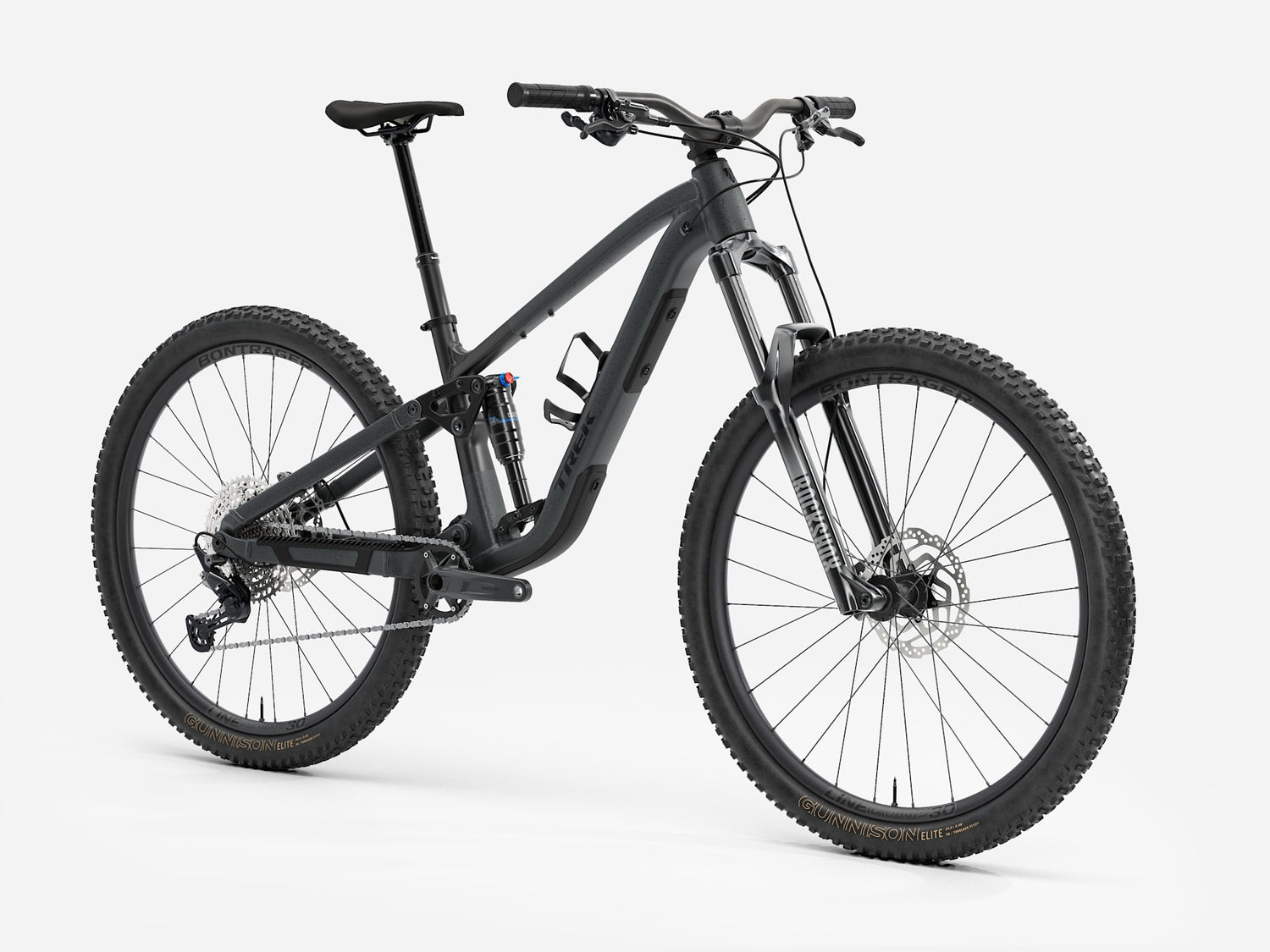

Trek 2026 Fuel Ex 5 Gen 7 - Lithium Grey/trek Black Splatter

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, Tubeless Ready wheels, a 12-speed Shimano Deore drivetrain and a TranzX dropper post, so you're ready for anything.

✔ Test Ride Available at Yarra Valley Cycles
✔ Workshop Built & Tuned Before Delivery
✔ Finance Available

Frame

• Frame: Alpha NEXT Platinum aluminium
• Internal frame storage
• Zero Stack headset
• Adjustable leverage rate suspension
• Guided internal cable routing
• Interchangeable alloy rocker link
• Interchangeable lower shock mount
• Downtube guard and shuttle guard
• BSA 73 bottom bracket
• ISCG 05 mounts
• ABP suspension system
• UDH compatible
• Boost 148 rear spacing
• Adaptable travel: 145 mm – 160 mm

Suspension

• Fork: RockShox Recon Silver RL
• Solo Air spring
• Motion Control damper
• Crown lockout
• Tapered steerer
• 42 mm offset
• Boost 110
• 15 mm Maxle Stealth
• 150 mm travel

• Rear Shock: X-Fusion Pro 2
• 2-position damper
• 205 x 60 mm

Wheelset

• Front Hub: Shimano TC500 alloy, CenterLock, 110x15 mm thru axle
• Rear Hub: Shimano TC500 alloy, CenterLock, 148x12 mm thru axle
• Rear Axle: Bontrager Switch thru axle with removable lever
• Rims: Bontrager Line TLR 30, Tubeless Ready, Presta valve
• 28 hole (select sizes)
• 32 hole (select sizes)

Tyres

• Size S: Bontrager Gunnison Elite XR, 27.5 x 2.40", Tubeless Ready, wire bead, 60 TPI
• Size S, M, L, XL: Bontrager Gunnison Elite XR, 29 x 2.40", Tubeless Ready, wire bead, 60 TPI
• Bontrager TLR sealant included (180 ml)
• Bontrager TLR rim strip
• Max Tyre Size: Frame 29 x 2.50"

Drivetrain

• Shifter: Shimano Deore M6100, 12-speed
• Rear Derailleur: Shimano Deore M6100, long cage
• Crankset: Shimano MT512, 30T chainring
• 55 mm chainline
• 170 mm crank length
• Bottom Bracket: Shimano BB-MT501 BSA
• Cassette: Shimano Deore M6100, 10–51T, 12-speed
• Chain: Shimano Deore M6100
• Max Chainring Size: 34T (oval 32T)
• Minimum Chainring: 30T

Components

• Saddle: Bontrager Verse Short with stainless rails
• Seatpost (S): TranzX JD-YSI34 dropper, 150 mm travel, internal routing
• Seatpost (M, L, XL): TranzX JD-YSI34 dropper, 170 mm travel, internal routing
• Handlebar: Bontrager Comp alloy, 31.8 mm clamp, 40 mm rise, 780 mm width
• Grips: Trek Line Comp nylon lock-on
• Stem: Bontrager Comp, 35 mm length, 7°
• Headset: FSA Orbit sealed cartridge bearing

Brakes

• Brake System: Shimano hydraulic disc
• MT201 lever with MT200 calliper
• Rotors: Shimano RT10 CenterLock, 180 mm
• Max Rotor Size: Frame 203 mm
• Minimum Rotor: 180 mm

Weight

• Size M: 17.02 kg / 37.53 lbs
• Measured with tubeless sealant installed
