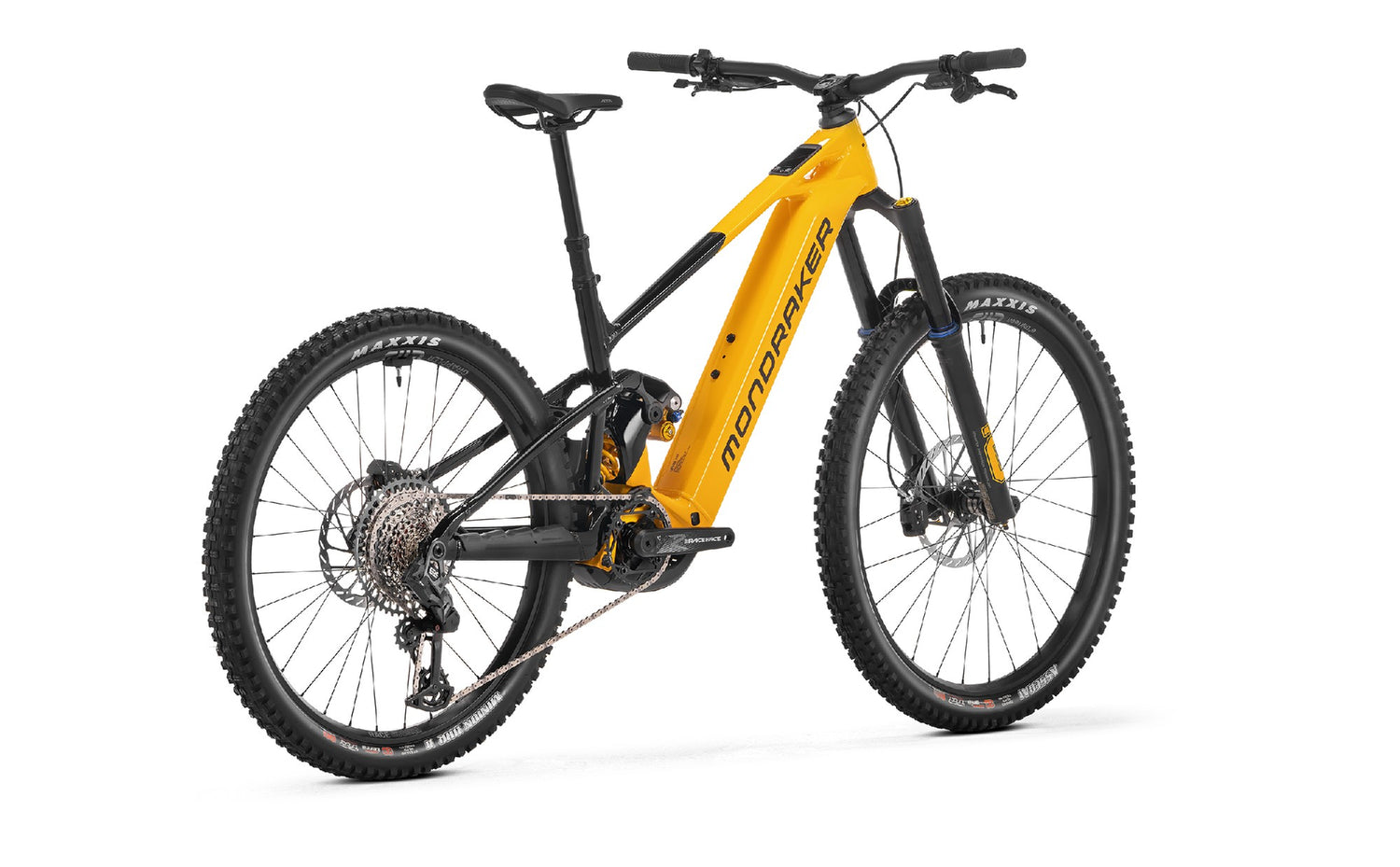

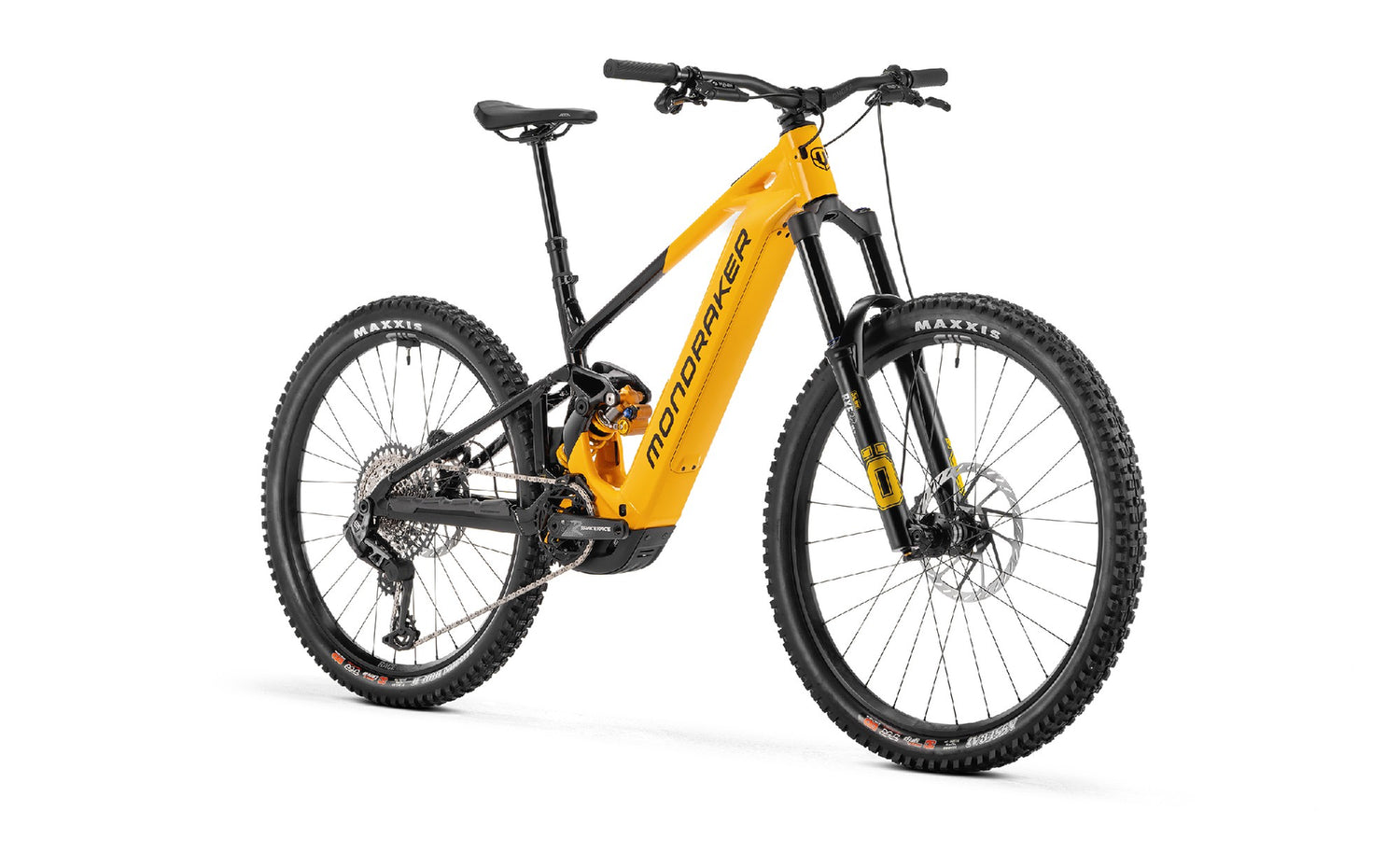

Mondraker 2026 - Level Xr - Dense Yellow Newmondra

<p><strong>Frame</strong><br>

Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers.</p>

<hr>

<p><strong>Sizes</strong><br>

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm</p>

<hr>

<p><strong>Rear Shock</strong><br>

Öhlins TTX22M.2 205x65mm.<br>

Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload.<br>

Trunnion top mount, 30x8mm bottom bushings.</p>

<hr>

<p><strong>Shock Settings</strong><br>

C10 compression, R20 rebound.<br>

Spring rate: S size 343 lbs, M size 411 lbs, ML size 457 lbs, L size 502 lbs, XL size 502 lbs.</p>

<hr>

<p><strong>Fork</strong><br>

Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm.<br>

Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber.</p>

<hr>

<p><strong>Headset</strong><br>

Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º.</p>

<hr>

<p><strong>Stem</strong><br>

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.</p>

<hr>

<p><strong>Handlebar</strong><br>

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.<br>

L and XL size: 38mm rise.</p>

<hr>

<p><strong>Grips</strong><br>

Onoff Desert Pro, CNC lock-on, 135mm.<br>

L and XL: Thicker size.</p>

<hr>

<p><strong>Seatpost</strong><br>

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing.<br>

S size: 140–115mm (388–235mm)<br>

M size: 160–135mm (428–255mm)<br>

ML size: 180–155mm (468–275mm)<br>

L size: 210–185mm (528–305mm)<br>

XL size: 210–185mm (528–305mm)</p>

<hr>

<p><strong>Saddle</strong><br>

FIZIK Terra Aidon X5 145mm</p>

<hr>

<p><strong>Front Brake</strong><br>

Sram Maven Silver, 18 and 19.5mm 4-piston caliper, HS2 220mm IS 6-bolt one-piece rotor, steel-backed metal sintered pads.</p>

<hr>

<p><strong>Rear Brake</strong><br>

Sram Maven Silver, 18 and 19.5mm 4-piston caliper, HS2 200mm IS 6-bolt one-piece rotor, steel-backed metal sintered pads.</p>

<hr>

<p><strong>Brake Lever</strong><br>

Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust.</p>

<hr>

<p><strong>Rims</strong><br>

e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes front, 27.5 rear.</p>

<hr>

<p><strong>Spokes</strong><br>

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers.</p>

<hr>

<p><strong>Front Hub</strong><br>

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts.</p>

<hr>

<p><strong>Rear Hub</strong><br>

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub.</p>

<hr>

<p><strong>Front Tire</strong><br>

Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead.</p>

<hr>

<p><strong>Rear Tire</strong><br>

Maxxis Minion DHR II 27.5x2.6WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead.</p>

<hr>

<p><strong>Crankset</strong><br>

Race Face Aeffect eBike, 160mm (all sizes).</p>

<hr>

<p><strong>Chainring</strong><br>

Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55.</p>

<hr>

<p><strong>Chain</strong><br>

Sram GX Eagle T-Type, 12-speed, Powerlock.</p>

<hr>

<p><strong>Rear Derailleur</strong><br>

Sram GX Eagle AXS T-Type, 12-speed.</p>

<hr>

<p><strong>Shift Lever</strong><br>

Sram Eagle AXS Pod MMX, 12-speed.</p>

<hr>

<p><strong>Cassette</strong><br>

Sram XS-1275, 10–52T, T-Type, 12-speed.</p>

<hr>

<p><strong>Weight</strong><br>

25.9 kg</p>

<hr>

<p><strong>Display</strong><br>

Kiox 400C / Bosch Mini Remote.</p>

<hr>

<p><strong>Motor</strong><br>

Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y).</p>

<hr>

<p><strong>Battery</strong><br>

Bosch Powertube 800Wh.</p>
