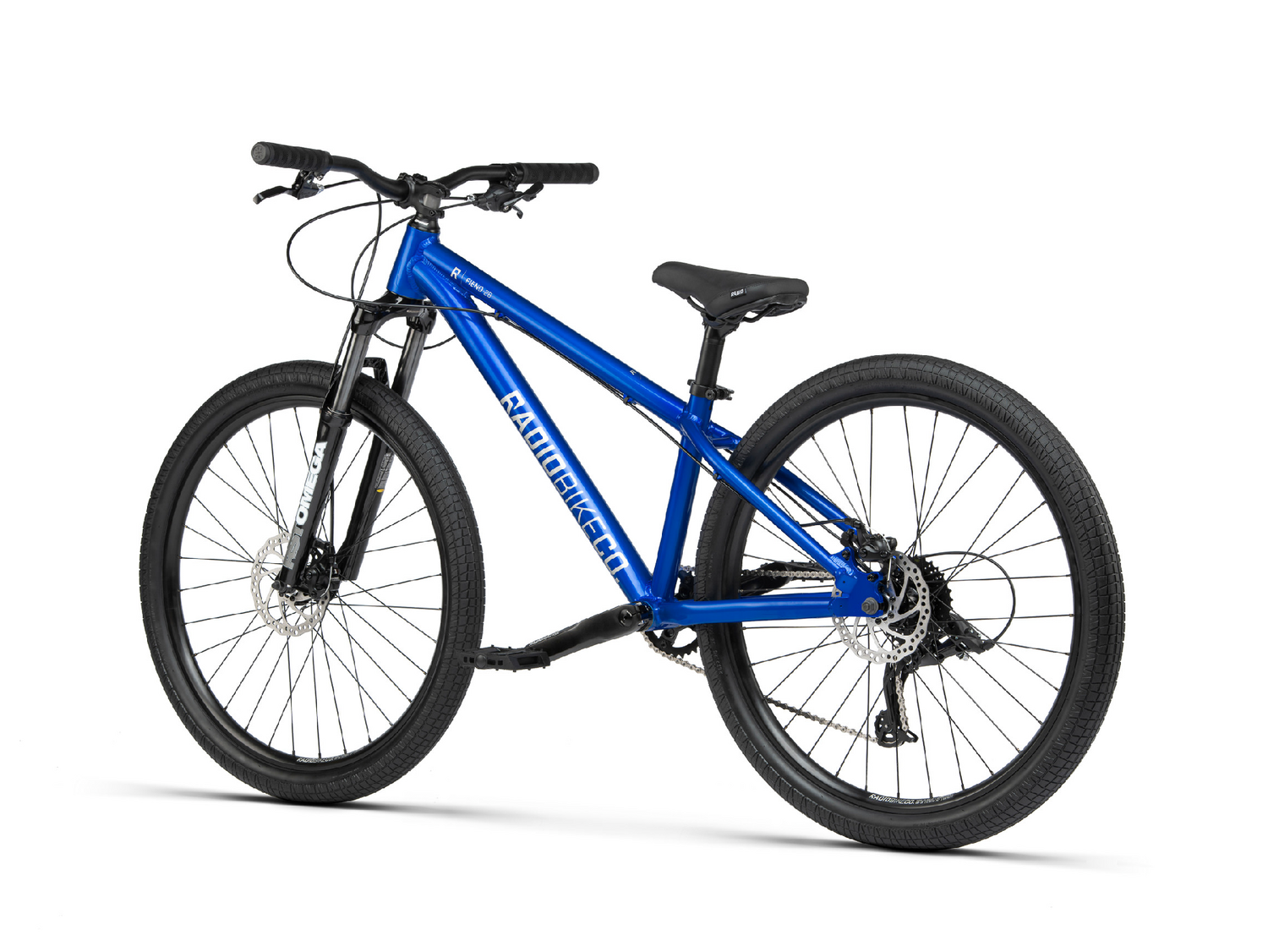

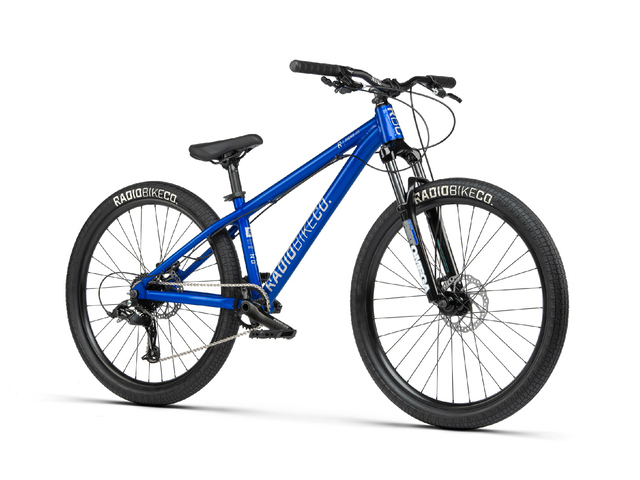

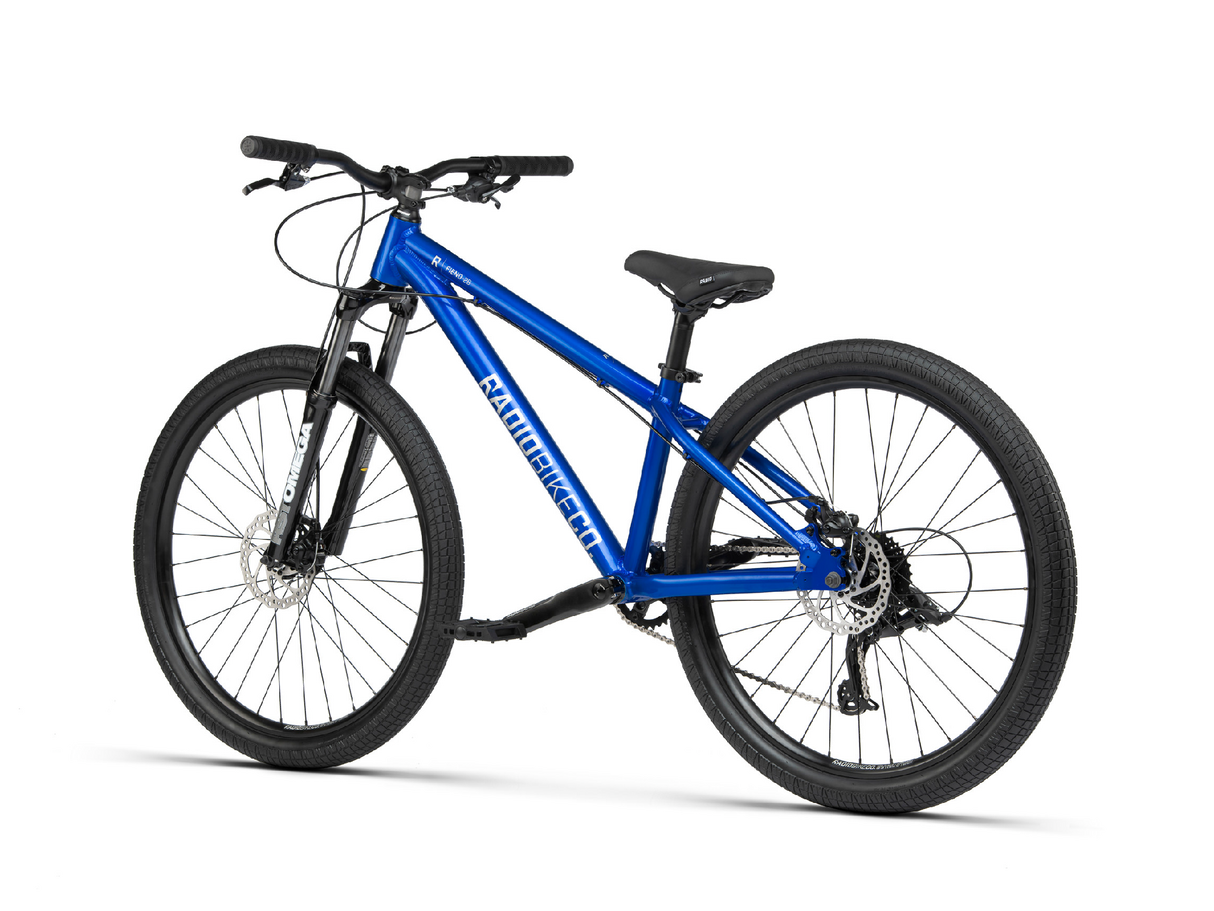

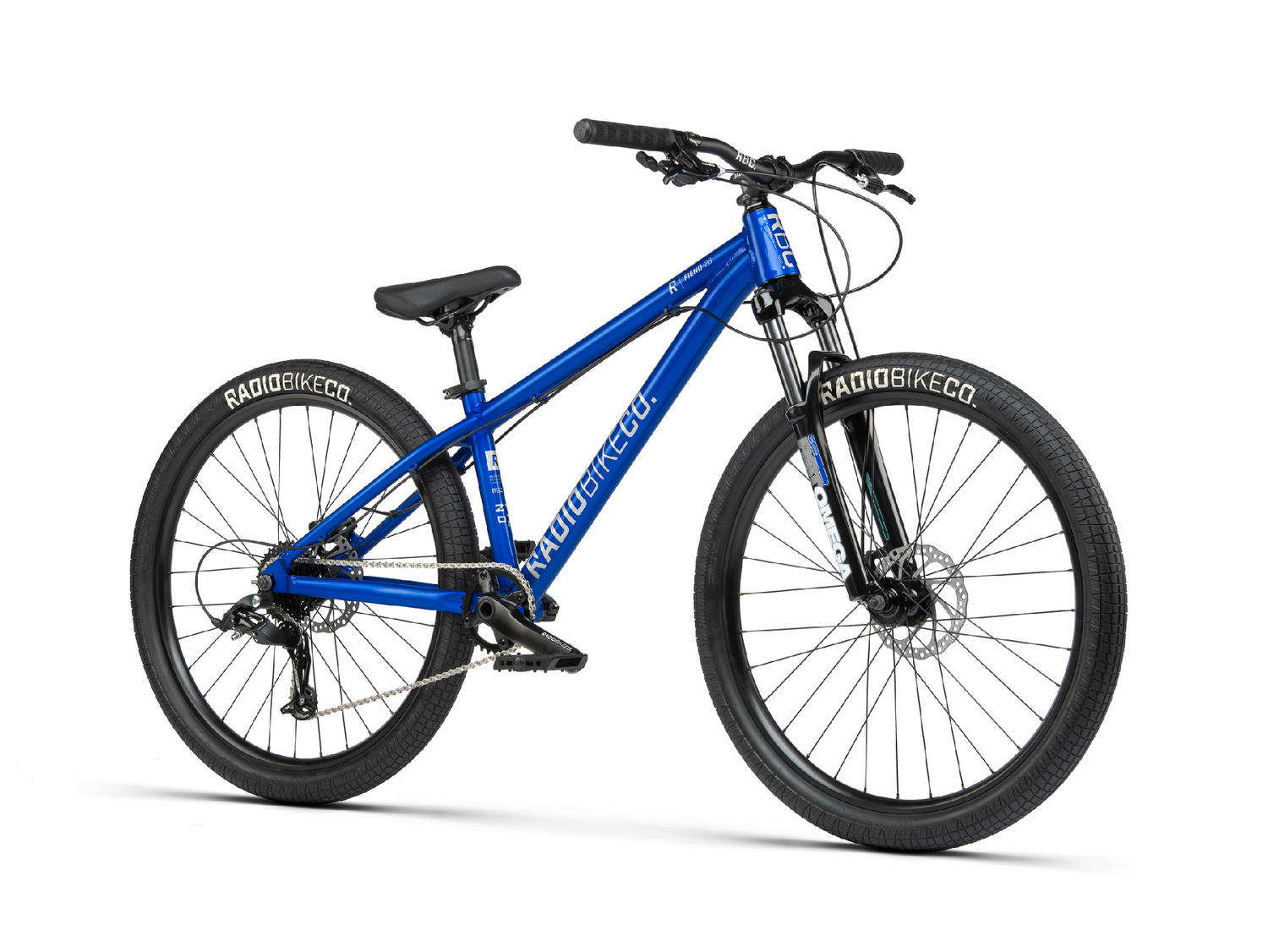

Radio Fiend 26" Dj Bike - 22.3 Top-tube - 8 Speed Geared - Candy Blue

For those times when bigger is better, Radio offers a full range of 26” bikes, ready for serious all-terrain fun. The 26” fiend features a lightweight 6061-t6 alloy frame, along with a 100mm travel fork and an 8-speed gear setup making it perfect for both fun on the pump track and shredding in the streets. This is one fun and exciting 26” machine which you won’t be able to put down.

Frame - Radio “fiend” frame, 6061-t6 alloy, tapered head tube
Fork - RST “omega t26” fork, 100mm travel
Handlebar - Radio “asura” bar, 6061-t6 alloy, 31.8mm
Grips - Radio “frequency xl” grips, flangeless, 160mm
Stem - Radio “dj” frontload stem, alloy, 40mm reach
Headset - FSA “no.57e” integrated a-headset, 1-1/8"-1.5"
Brake lever - Tektro “rs-360a” lever, front & rear
Brake - Tektro “aries” mechanical disc brake, 160mm rotor, front & rear
Crank - Radio “pro” 2pc crank, forged alloy, 170mm, 24mm spindle
BB - Radio “bsa24” bb set, sealed bearing
Pedals - Radio “slim” pedals, nylon/fiberglass
Chain - KMC “x8” chain
Sprocket - Radio “am” steel sprocket 32t
Driver - Sun race 12-32t, 8 speed
Front hub - Radio “am-dj” disc hub, alloy, sealed, 3/8"s male axle, 32h
Rear hub - Radio “am-dj” disc cassette hub, alloy, sealed, 3/8"s male axle, 32h
Front rim - Radio “db30” rim, double wall
Rear rim - Radio “db30” rim, double wall
Seat - Radio “dj” railed seat
Seat post - Radio “sp53” seat post, micro-adjust, alloy, 300mm
Seat clamp - Radio “quick release” seat clamp, alloy
Tires - Radio “rookie” tires, 2.2" front & rear
Weight - 13.74kg / 30.32lbs

Frame geometry
Top tube length - 22.3"
Chain stay length - 15.8"
Head tube angle - 70°
Seat tube angle - 75°
Bottom bracket height - 25mm drop
Standover height - 11"

Handlebar geometry
Rise - 50mm
Width - 740mm
Backsweep - 8°
Upsweep - 3°
