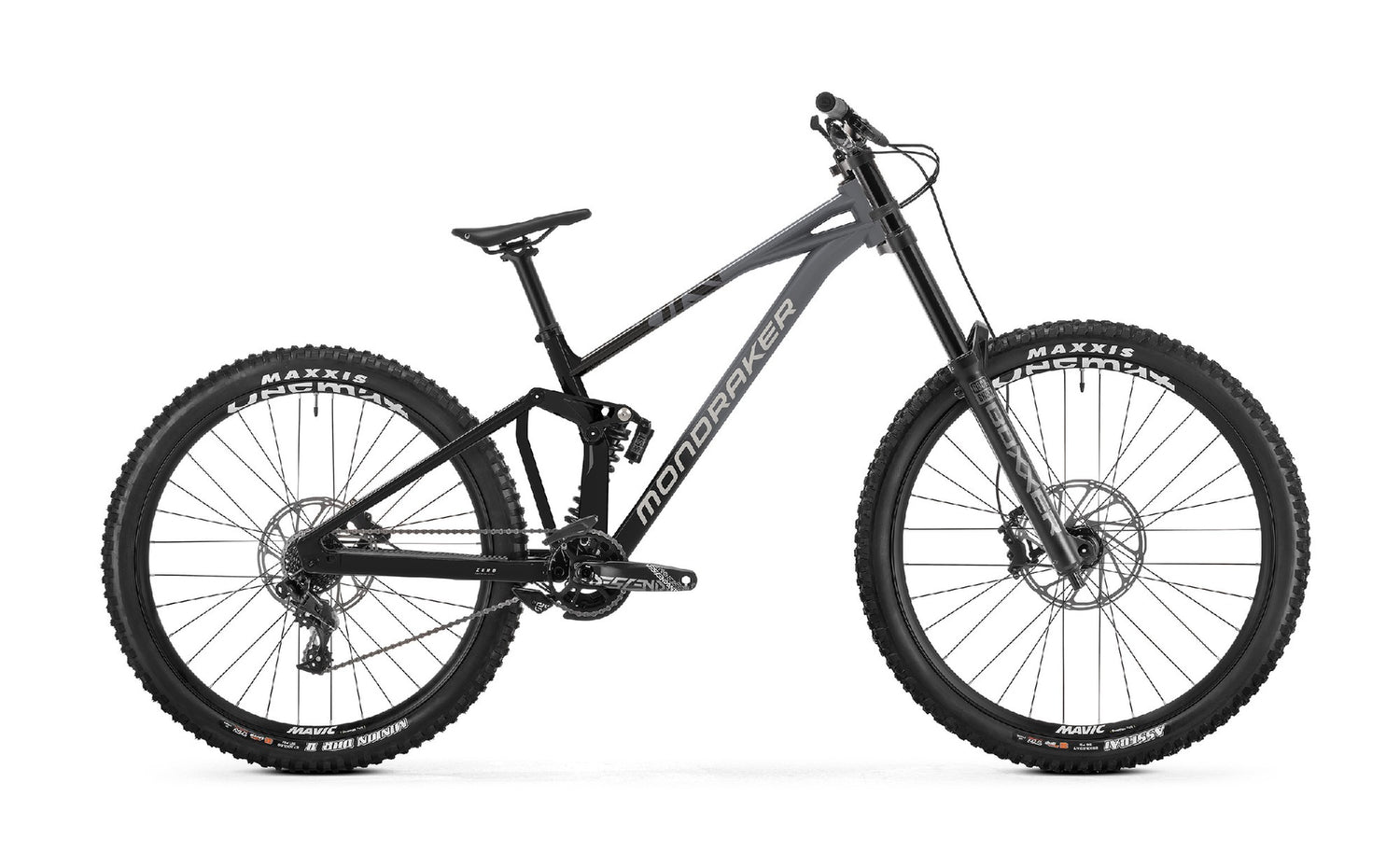

Mondraker 2026 Summum Se Mullet Nimbus Grey

Frame
Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit.

Sizes
S / M / L / XL MX

Rear Shock
Rock Shox Vivid Coil Select R, 225x70mm.
Rebound adjustable, HBO adjust and spring preload.
Trunnion top mount, 30x8mm bottom bushings.

Shock Settings
C40 compression, R55 rebound.
Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs.

Fork
RockShox Boxxer Select RC 29, 200mm, DebonAir+, 1-1/8” steerer tube, Boost 20x110mm axle, offset 52mm.
Settings: low-speed compression, rebound, air preload.

Headset
Onoff ZS56/ZS56, 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 62mm.

Stem
Onoff S9 DH CNC Integrated, 45–50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer.

Handlebar
Onoff S6 1.0 7075 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.
L and XL size: 1.5 rise.

Grips
Onoff Desert Pro, CNC lock-on, 135mm.
L and XL: Thicker size.

Seatpost
Onoff S3 DH Alloy, diameter 31.6mm, length 300mm.

Saddle
Ergon SM10 DH Black.

Front Brake
Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6-bolt one-piece rotor, steel-backed metal sintered pads.

Rear Brake
Sram DB8, oversized 4-piston caliper, Centerline 203mm IS 6-bolt one-piece rotor, steel-backed metal sintered pads.

Brake Lever
Sram DB8, tool reach adjust, lever pivot bushings.

Rims
Mavic Deemax BikePark 29, 30mm internal width, 32 holes.

Spokes
Mavic 32 steel flat spokes.

Front Hub
Mavic Boost 20x110mm, IS 6 bolts.

Rear Hub
Mavic 12x157mm, ID360 freewheel, sealed bearings, IS 6 bolts, HG freehub.

Front Tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.

Rear Tire
Maxxis DHR II 27.5x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.

Crankset
Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56.5.

Chainring
34T, steel, X-SYNC.

Bottom Bracket
Sram DUB BSA, sealed bearings, 83mm.

Chain
Sram PC1110, 11-speed, Powerlock.

Front Derailleur
E.13 Vario Compact Upper Slider, Alloy backplate, DMB (Direct mount Bashguard) Lower Slider 34–36T, ISCG 05 adjustable upper slider.

Rear Derailleur
Sram GX DH, 7-speed, medium cage.

Shift Levers
Sram trigger GX DH, 7-speed, X-actuation 1:1.

Cassette
Sram PG 720 11–25T, 7-speed.

Derailleur Hanger
Mondraker M068.

Others
*Optional geometry kit: ±1º / ±2º headset cups.
