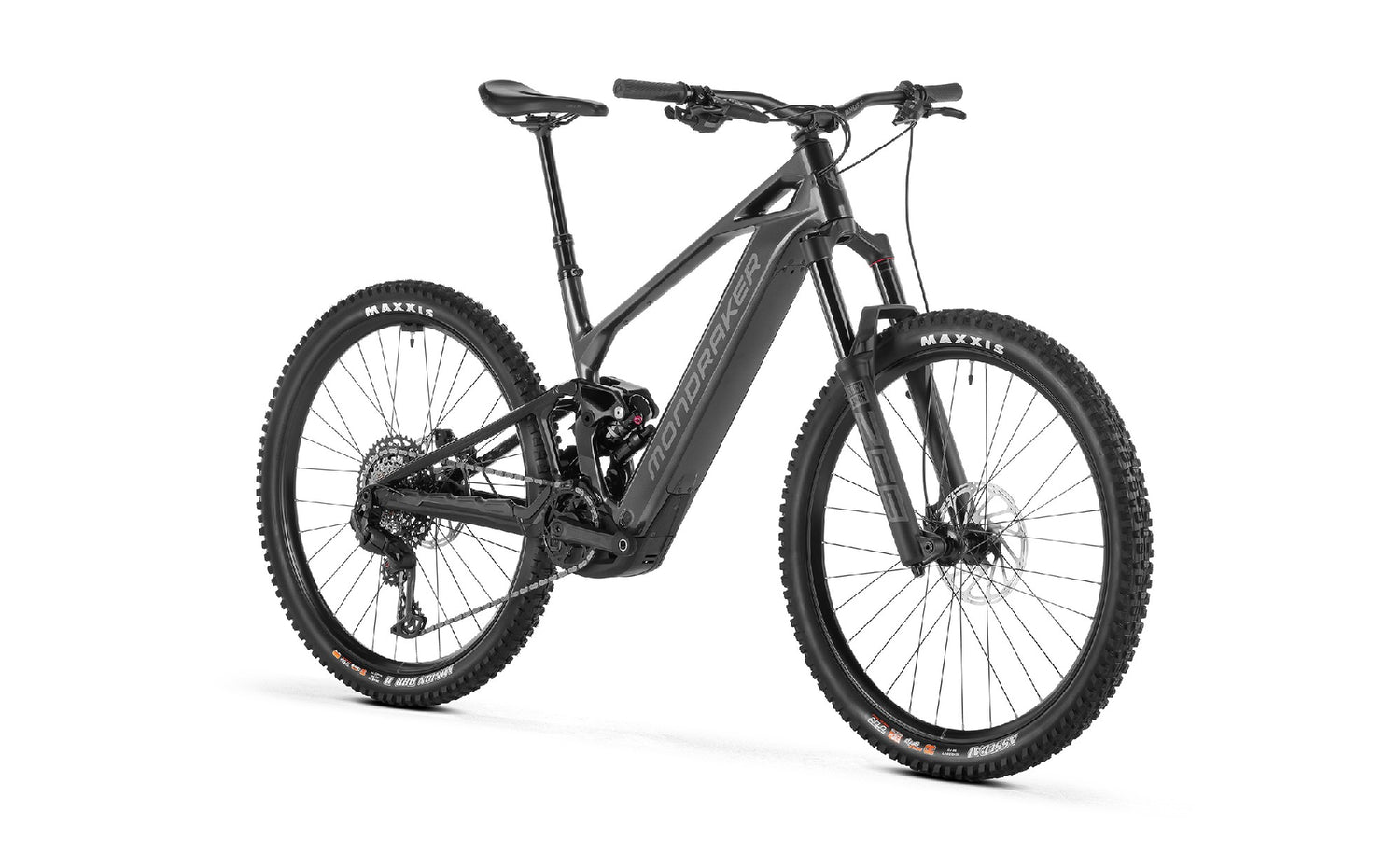

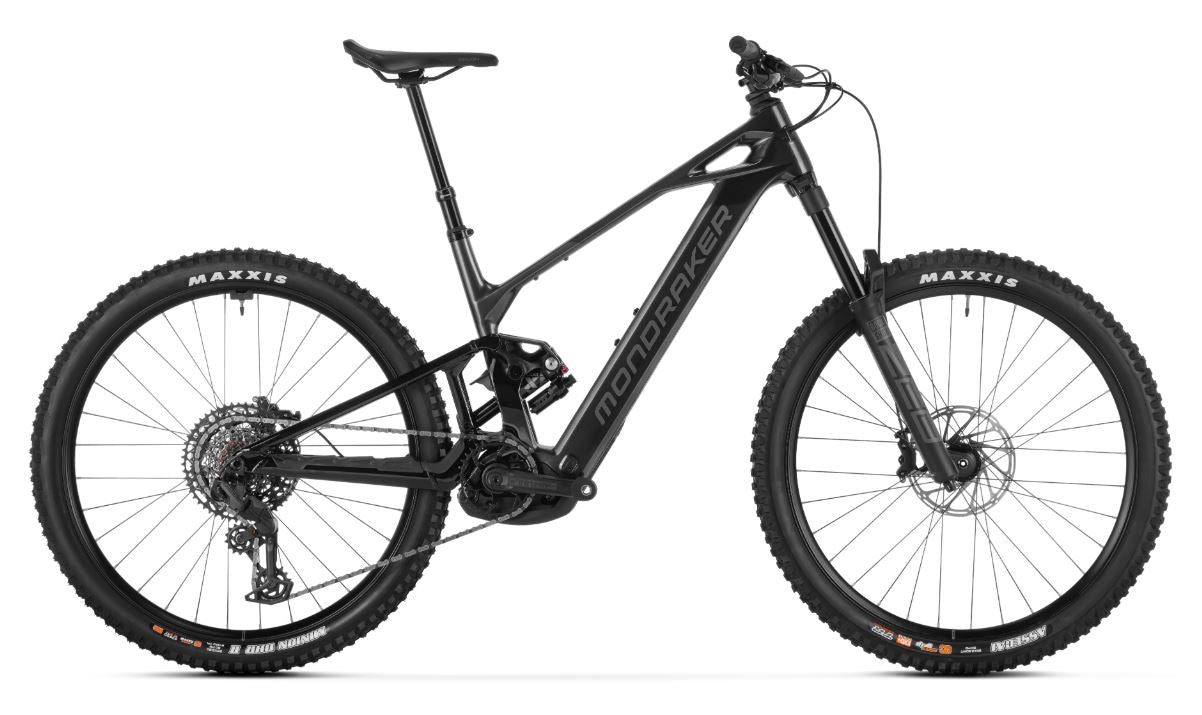

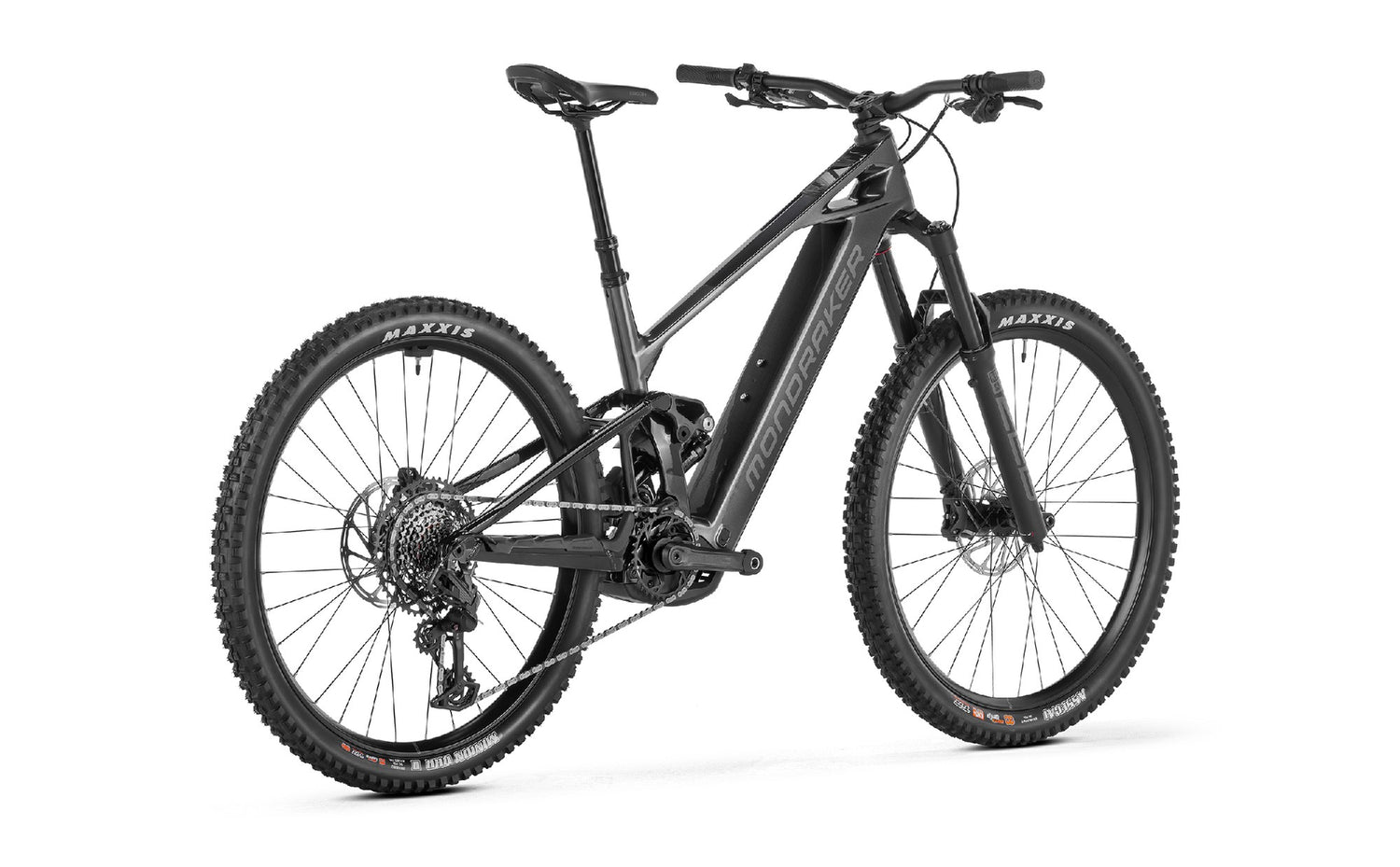

Mondraker 2026 - Crafty Carbon S - Vortex Grey Newmondra

Frame
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

---

Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

---

Rear Shock
Fox Float-X LV Performance, 185x55mm.
Settings: compression 2 positions lever, low-speed rebound, air preload.
Trunnion top mount, 30x8mm bottom bushings.

---

Shock Settings
CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer.

---

Fork
RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset.
Settings: low-speed compression, Extl rebound, air preload.

---

Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock.

---

Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore.

---

Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.
L and XL size: 38mm rise.

---

Grips
Onoff Desert Pro, CNC lock-on, 135mm.
L and XL: Thicker size.

---

Seatpost
X-Fusion Manic, diameter 31.6mm, 1X Remote lever.
S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200.

---

Saddle
Ergon SM-10.

---

Front Brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.

---

Rear Brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.

---

Brake Lever
Sram DB8 Stealth, tool reach adjust, lever pivot bushings.

---

Rims
WTB Sportterra Tough, 6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes.

---

Spokes
WTB Straight gauge spokes & black brass locking nipples.

---

Front Hub
WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts.

---

Rear Hub
WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub.

---

Front Tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead.

---

Rear Tire
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead.

---

Crankset
E.13 Helix Core E*Spec Plus, all sizes: 160mm.

---

Rings
Sram Eagle 34T T-Type, direct mount, steel, CL55.

---

Chain
Sram 70 T-Type, 12s Flattop, PowerLock.

---

Rear Derailleur
Sram 70 Eagle, T-Type, 12s.

---

Shift Levers
Sram Trigger 70, 12s, T-Type Actuation.

---

Cassette
Sram XS-1270, 10-52T, 12s.

---

Weight
24.3 kg.

---

Display
Kiox 400C / Bosch Mini Remote.

---

Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y).

---

Battery
Bosch Powertube 800Wh.
