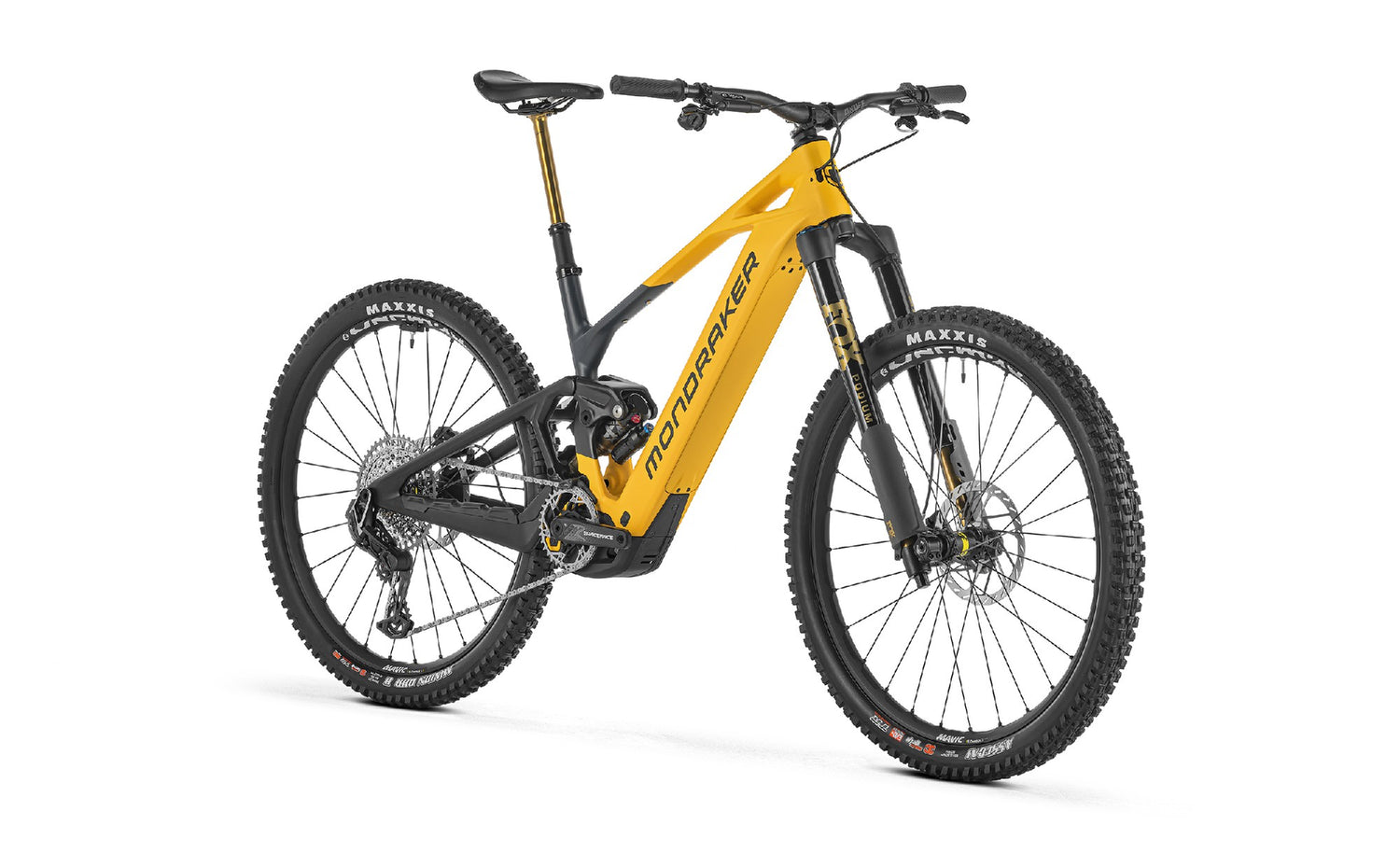

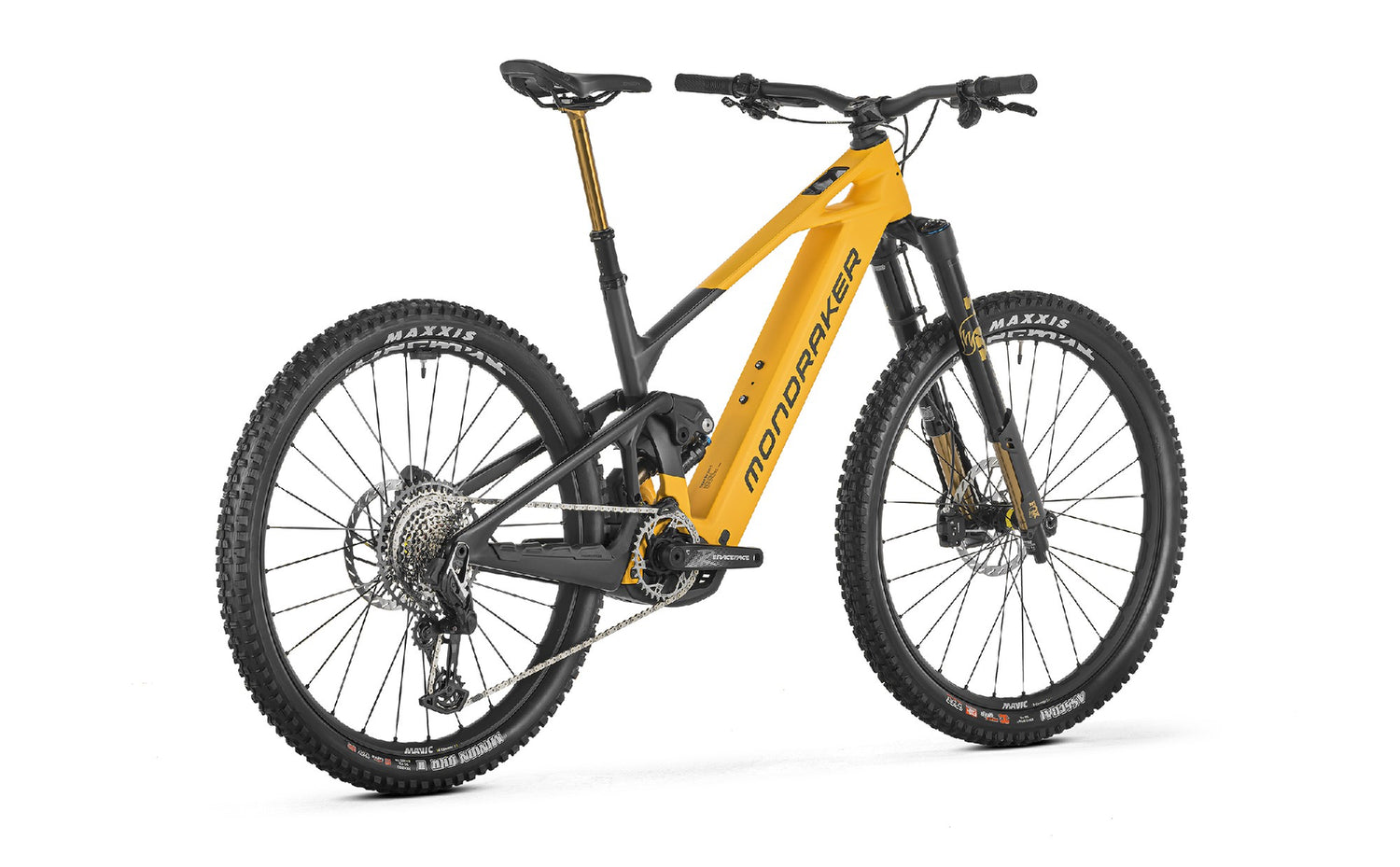

Mondraker 2026 - Crafty Carbon Rr S - Dense Yellow Newmondra

<p><strong>Frame</strong><br>

Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.</p>

<hr>

<p><strong>Sizes</strong><br>

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm</p>

<hr>

<p><strong>Rear Shock</strong><br>

Fox Float-X Factory Kashima EVOL LV, 185x55mm.<br>

Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload.<br>

Trunnion top mount, 30x8mm bottom bushings.</p>

<hr>

<p><strong>Shock Settings</strong><br>

CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer.</p>

<hr>

<p><strong>Fork</strong><br>

Fox Podium 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset.<br>

Settings: high and low-speed compression, high and low-speed rebound, air preload.</p>

<hr>

<p><strong>Headset</strong><br>

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock.</p>

<hr>

<p><strong>Stem</strong><br>

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.</p>

<hr>

<p><strong>Handlebar</strong><br>

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.<br>

L and XL size: 38mm rise.</p>

<hr>

<p><strong>Grips</strong><br>

Onoff Desert Pro, CNC lock-on, 135mm.<br>

L and XL: Thicker size.</p>

<hr>

<p><strong>Seatpost</strong><br>

Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm.<br>

S size: 95–120mm<br>

M size: 125–150mm<br>

ML size: 155–180mm<br>

L size: 185–210mm<br>

XL size: 185–210mm</p>

<hr>

<p><strong>Saddle</strong><br>

Ergon SM-10</p>

<hr>

<p><strong>Front Brake</strong><br>

Sram Maven Silver, 18 and 19.5mm 4-piston caliper, HS2 200mm IS 6-bolt one-piece rotor, steel-backed metal sintered pads.</p>

<hr>

<p><strong>Rear Brake</strong><br>

Sram Maven Silver, 18 and 19.5mm 4-piston caliper, HS2 200mm IS 6-bolt one-piece rotor, steel-backed metal sintered pads.</p>

<hr>

<p><strong>Brake Lever</strong><br>

Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust.</p>

<hr>

<p><strong>Rims</strong><br>

Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes.</p>

<hr>

<p><strong>Spokes</strong><br>

Mavic straight-pull double butted, contactless lacing.</p>

<hr>

<p><strong>Front Hub</strong><br>

Mavic, Boost 20x110mm, IS 6-bolt.</p>

<hr>

<p><strong>Rear Hub</strong><br>

Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6-bolt, XD freehub.</p>

<hr>

<p><strong>Front Tire</strong><br>

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MaxxGrip compound, EXO+ protection, 60TPI, folding bead.</p>

<hr>

<p><strong>Rear Tire</strong><br>

Maxxis Minion DHR II 29x2.5WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead.</p>

<hr>

<p><strong>Crankset</strong><br>

Race Face Aeffect-R eBike, 160mm.</p>

<hr>

<p><strong>Chainring</strong><br>

Sram XX Eagle 34T T-Type, direct mount, steel, CL55.</p>

<hr>

<p><strong>Chain</strong><br>

Sram GX Eagle T-Type, 12-speed, Powerlock.</p>

<hr>

<p><strong>Rear Derailleur</strong><br>

Sram X0 Eagle AXS, T-Type, 12-speed.</p>

<hr>

<p><strong>Shift Lever</strong><br>

Sram Eagle AXS Pod MMX, 12-speed.</p>

<hr>

<p><strong>Cassette</strong><br>

Sram XS-1275, 10–52T, T-Type, 12-speed.</p>

<hr>

<p><strong>Weight</strong><br>

23.9 kg</p>

<hr>

<p><strong>Display</strong><br>

Kiox 400C / Bosch Mini Remote.</p>

<hr>

<p><strong>Motor</strong><br>

Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y).</p>

<hr>

<p><strong>Battery</strong><br>

Bosch Powertube 800Wh.</p>
