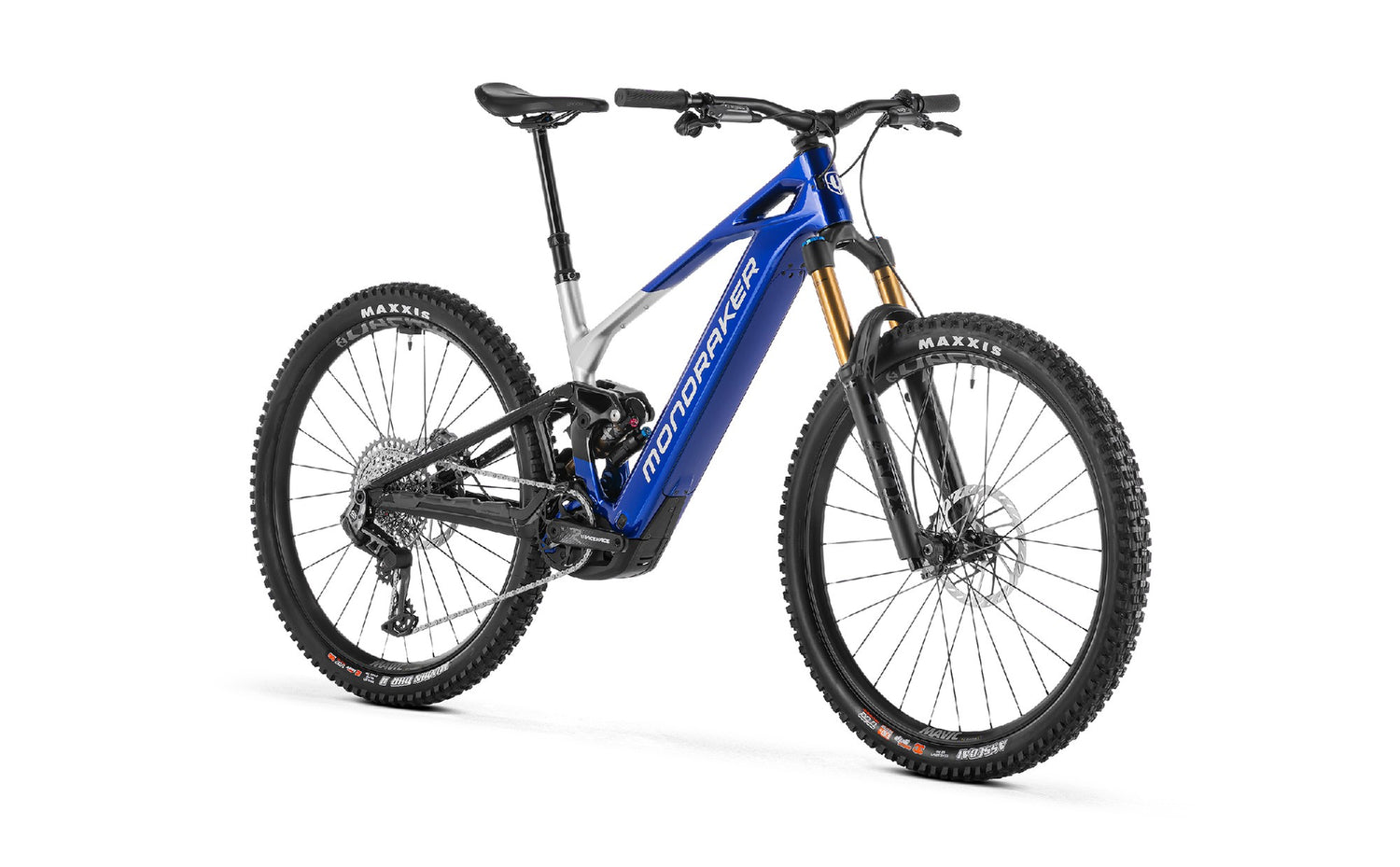

Mondraker 2026 - Crafty Carbon RR - Admiral Blue Newmondra

Frame
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear Shock
Fox Float X Factory Kashima EVOL, 185x55mm.
Settings: 2-position compression (Open/Firm), rebound, air preload.
Trunnion top mount, 30x8mm bottom bushings.

Shock Settings
CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer.

Fork
Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset.
Settings: high and low-speed compression, high and low-speed rebound, air preload.

Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock.

Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore.

Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.
L and XL size: 38mm rise.

Grips
Onoff Desert Pro, CNC lock-on, 135mm.
L and XL: Thicker size.

Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing.
S size: 140–115mm (388–235mm)
M size: 160–135mm (428–255mm)
ML size: 180–155mm (468–275mm)
L size: 210–185mm (528–305mm)
XL size: 210–185mm (528–305mm)

Saddle
Ergon SM-10

Front Brake
Sram Maven Bronze, 18 and 19.5mm 4-piston caliper, HS2 200mm IS 6-bolt one-piece rotor, steel-backed metal sintered pads.

Rear Brake
Sram Maven Bronze, 18 and 19.5mm 4-piston caliper, HS2 200mm IS 6-bolt one-piece rotor, steel-backed metal sintered pads.

Brake Lever
Sram Maven Bronze, SwingLink and lever pivot bushings, tools-free reach adjust.

Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes.

Spokes
Mavic J-bend double butted, contactless lacing.

Front Hub
Mavic, Boost 15x110mm, IS 6-bolt.

Rear Hub
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6-bolt, XD freehub.

Front Tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MaxxGrip compound, EXO+ protection, 60TPI, folding bead.

Rear Tire
Maxxis Minion DHR II 29x2.5WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead.

Crankset
Race Face Aeffect-R eBike, 160mm.

Chainring
Sram Eagle 34T T-Type, direct mount, steel, CL55.

Chain
Sram GX Eagle T-Type, 12-speed, Powerlock.

Rear Derailleur
Sram GX Eagle AXS, T-Type, 12-speed.

Shift Lever
Sram Eagle AXS Pod MMX, 12-speed.

Cassette
Sram XS-1275, 10–52T, T-Type, 12-speed.

Weight
24.4 kg

Display
Kiox 400C / Bosch Mini Remote.

Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y).

Battery
Bosch Powertube 800Wh.
