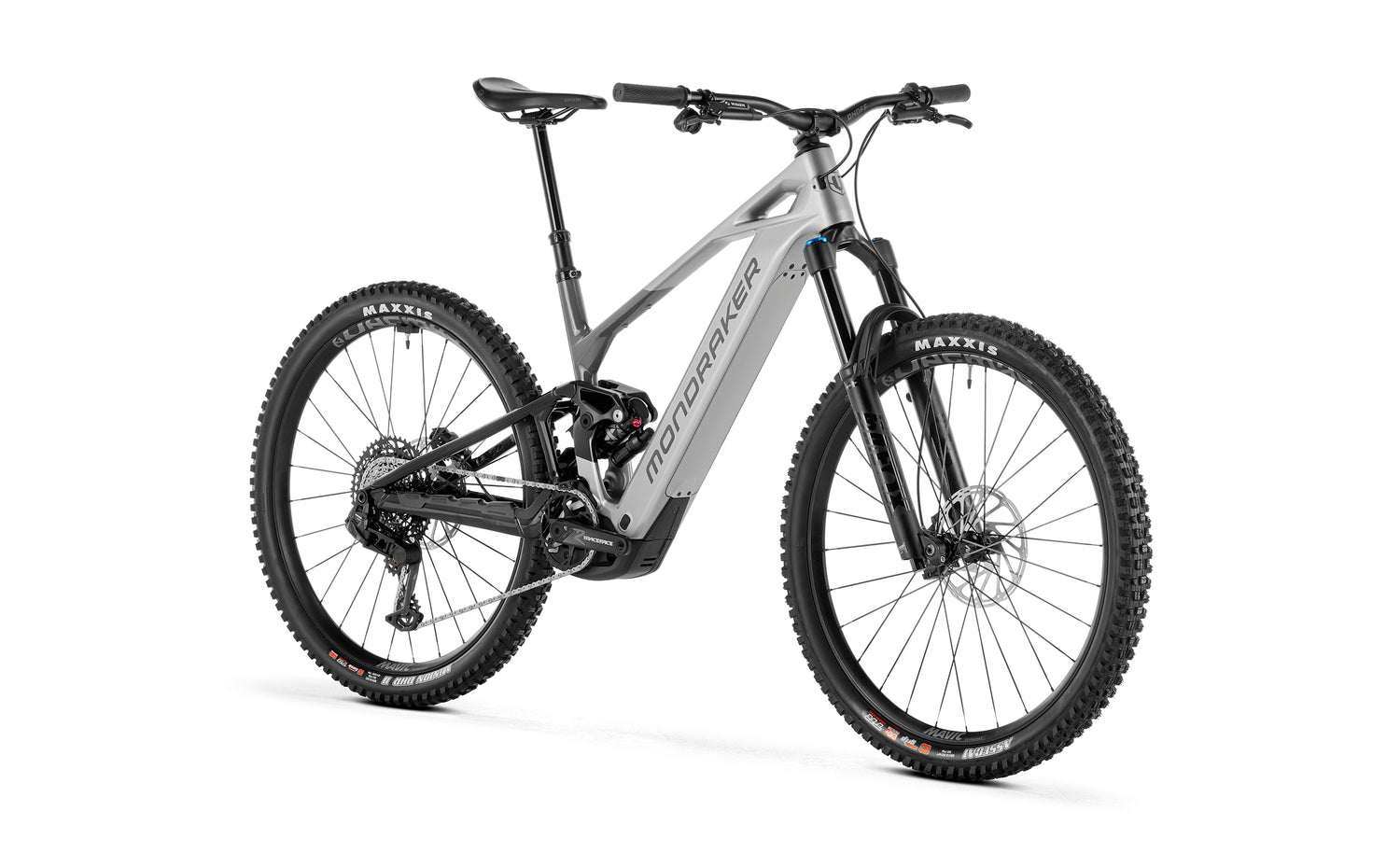

Mondraker 2026 Crafty Carbon R Golden Silver

The Mondraker 2026 Crafty Carbon R Golden Silver features a full carbon front triangle paired with a Stealth Alloy rear triangle, integrating the updated Zero Suspension System with 150mm travel for smooth and responsive rides. Its Forward Geometry enhances control and stability, complemented by internal removable battery design and Boost 12x148mm rear axle with UDH. The frame includes a tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, and MAX capacity sealed bearings with oversized 15mm axles, plus exclusive plastic motor covers for protection. Available sizes: S (380mm), M (410mm), ML (435mm), L (460mm), XL (490mm). The rear shock is a Fox Float-X LV Performance (185x55mm) equipped with compression (2-position lever), low-speed rebound, air preload, Trunnion top mount, and 30x8mm bottom bushings. Recommended shock settings: CS40 compression, RL70 rebound, Rezi B40, LML, and 0.2 volume spacer. The front fork is a Fox 38 29 Float GRIP Performance with 160mm travel, e-bike tuned, and a tapered steerer for precise handling.

• Frame
  Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

  ---

  Sizes
  S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

  ---

  Rear Shock
  Fox Float-X LV Performance, 185x55mm.
  Settings: compression 2 positions lever, low-speed rebound, air preload.
  Trunnion top mount, 30x8mm bottom bushings.

  ---

  Shock Settings
  CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer.

  ---

  Fork
  Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset.
  Settings: 3 positions with micro adjust compression, low-speed rebound, air preload.

  ---

  Headset
  Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock.

  ---

  Stem
  Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore.

  ---

  Handlebar
  Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.
  L and XL size: 38mm rise.

  ---

  Grips
  Onoff Desert Pro, CNC lock-on, 135mm.
  L and XL: Thicker size.

  ---

  Seatpost
  Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing.
  S size: 140–115mm (388–235mm)
  M size: 160–135mm (428–255mm)
  ML size: 180–155mm (468–275mm)
  L size: 210–185mm (528–305mm)
  XL size: 210–185mm (528–305mm)

  ---

  Saddle
  Ergon SM-10

  ---

  Front Brake
  Sram Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6-bolt one-piece rotor, steel-backed organic pads.

  ---

  Rear Brake
  Sram Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6-bolt one-piece rotor, steel-backed organic pads.

  ---

  Brake Lever
  Sram Maven Base, Directlink and lever pivot bushings, tools-free reach adjust.

  ---

  Rims
  Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes.

  ---

  Spokes
  Mavic J-bend double butted, contactless lacing.

  ---

  Front Hub
  Mavic, Boost 15x110mm, IS 6-bolt.

  ---

  Rear Hub
  Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6-bolt, HG freehub.

  ---

  Front Tire
  Maxxis Assegai 29x2.5WT, tubeless ready, 3C MaxxGrip compound, EXO+ protection, 60TPI, folding bead.

  ---

  Rear Tire
  Maxxis Minion DHR II 29x2.5WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead.

  ---

  Crankset
  Race Face Aeffect-R eBike, 160mm.

  ---

  Chainring
  Sram Eagle 34T T-Type, direct mount, steel, CL55.

  ---

  Chain
  Sram GX Eagle T-Type, 12-speed, Powerlock.

  ---

  Rear Derailleur
  Sram S1000 Eagle AXS T-Type, 12-speed.

  ---

  Shift Lever
  Sram Eagle AXS Pod MMX, 12-speed.

  ---

  Cassette
  Sram XS-1270, 10–52T, T-Type, 12-speed.

  ---

  Weight
  24.5 kg

  ---

  Display
  Kiox 400C / Bosch Mini Remote.

  ---

  Motor
  Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y).

  ---

  Battery
  Bosch Powertube 800Wh.
