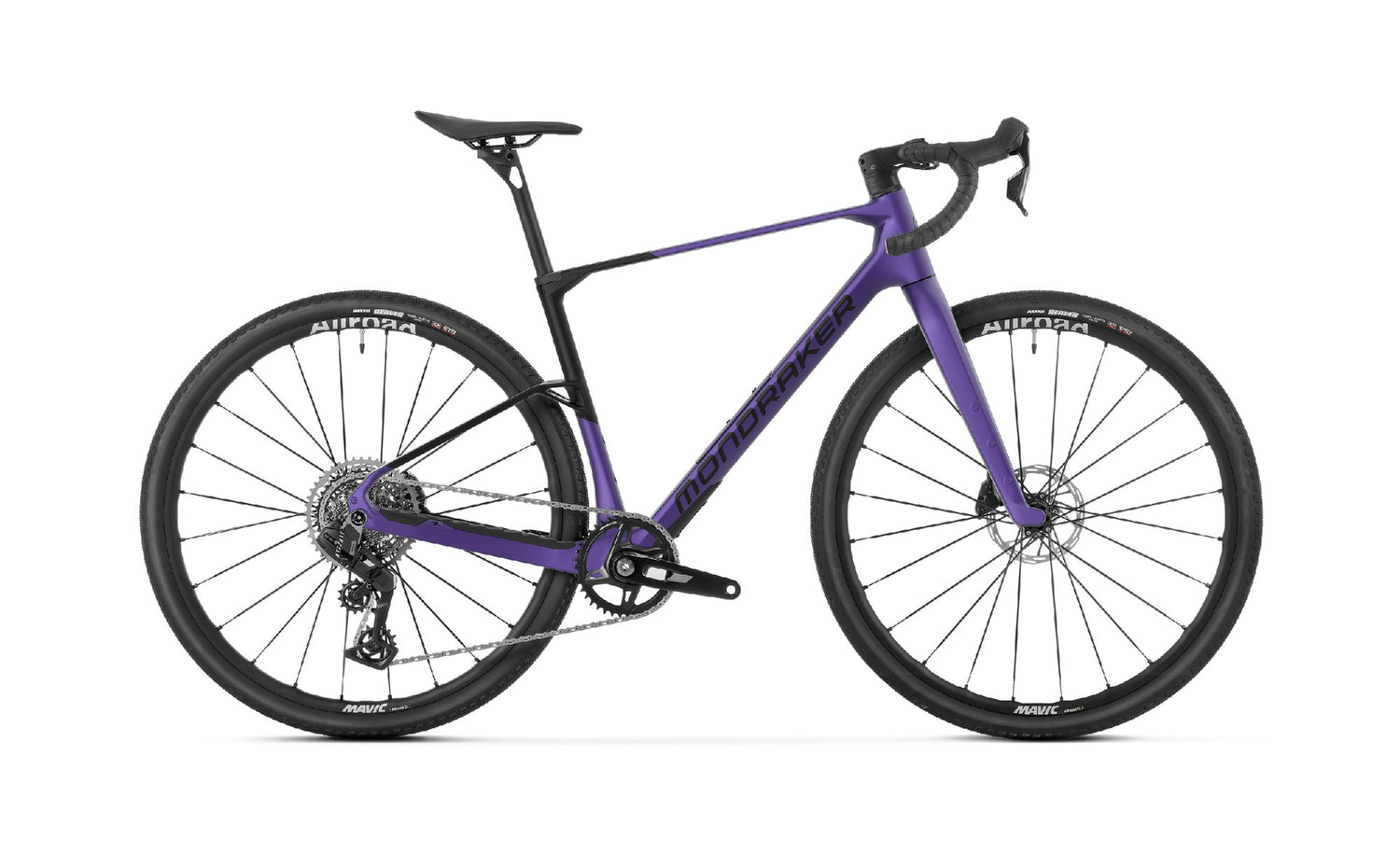

Mondraker 2026 - Arid Carbon R Ultraviolet - Newmondra
Mondraker 2026 - Arid Carbon R Ultraviolet - Newmondra - M/L is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Local Delivery Available
Local Delivery Available
Yarra Valley Cycles offer Local delivery within 20km. Some Fees apply.
Postage & Shipping - Free on "most" small parcel orders over $200
Postage & Shipping - Free on "most" small parcel orders over $200
YVC offers Free Shipping on most small items online when your spend over $200. Large & Bulky items may attract shipping fee. Calculated at Checkout.
![Mondraker 2026 - Arid Carbon R Ultraviolet - Newmondra [sz:m/l]](http://www.yarravalleycycles.com.au/cdn/shop/files/8435803013544_1.jpg?v=1761184143&width=112)
Mondraker 2026 - Arid Carbon R Ultraviolet - Newmondra
Description
Description
Detailed description
Frame
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar
Onoff S9 GR CARBON 16º bar flare. Width sizes S size: 420mm M size: 420mm ML size: 440mm L size: 460mm XL size: 460mm
Grips
Onoff HEX Bartape
Seatpost
Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Saddle
Fizik Vento Argo X5 140mm
Front brake
Sram Rival AXS HRD 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Rear brake
Sram Rival AXS HRD, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake lever
Sram Rival, tooled reach adjust, carbon brake lever
Rims
Mavic Allroad SL, UST, 25mm internal width, hookless, infinity hubs, 24 spokes
Spokes
Mavic Steel double butted flat spokes
Front hub
Mavic, 12x100mm, IS 6 bolts
Rear hub
Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, XDR Freehub
Front tire
Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire
Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset
Sram Rival XPLR AXS, DUB WIDE axle, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5
Rings
Sram 40T Direct mount, alloy, narrow-wide,
Bottom bracket
Sram DUB T47 BSA, sealed bearings, 85,5mm
Chain
Sram Rival, Flattop, 13s, Powerlock
Rear derrailleur
Sram Rival XPLR AXS, 13s
Shift levers
Sram Rival AXS HRD, 13s,
Casette
Sram XG-1351, 10-46T, 13s
Weight
8,9 kg
