Frame
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
Loading...
Mondraker | SKU:
01025AU155
Enquire Now
Enquire Now
Enquire Now
Enquire Now
Enquire Now

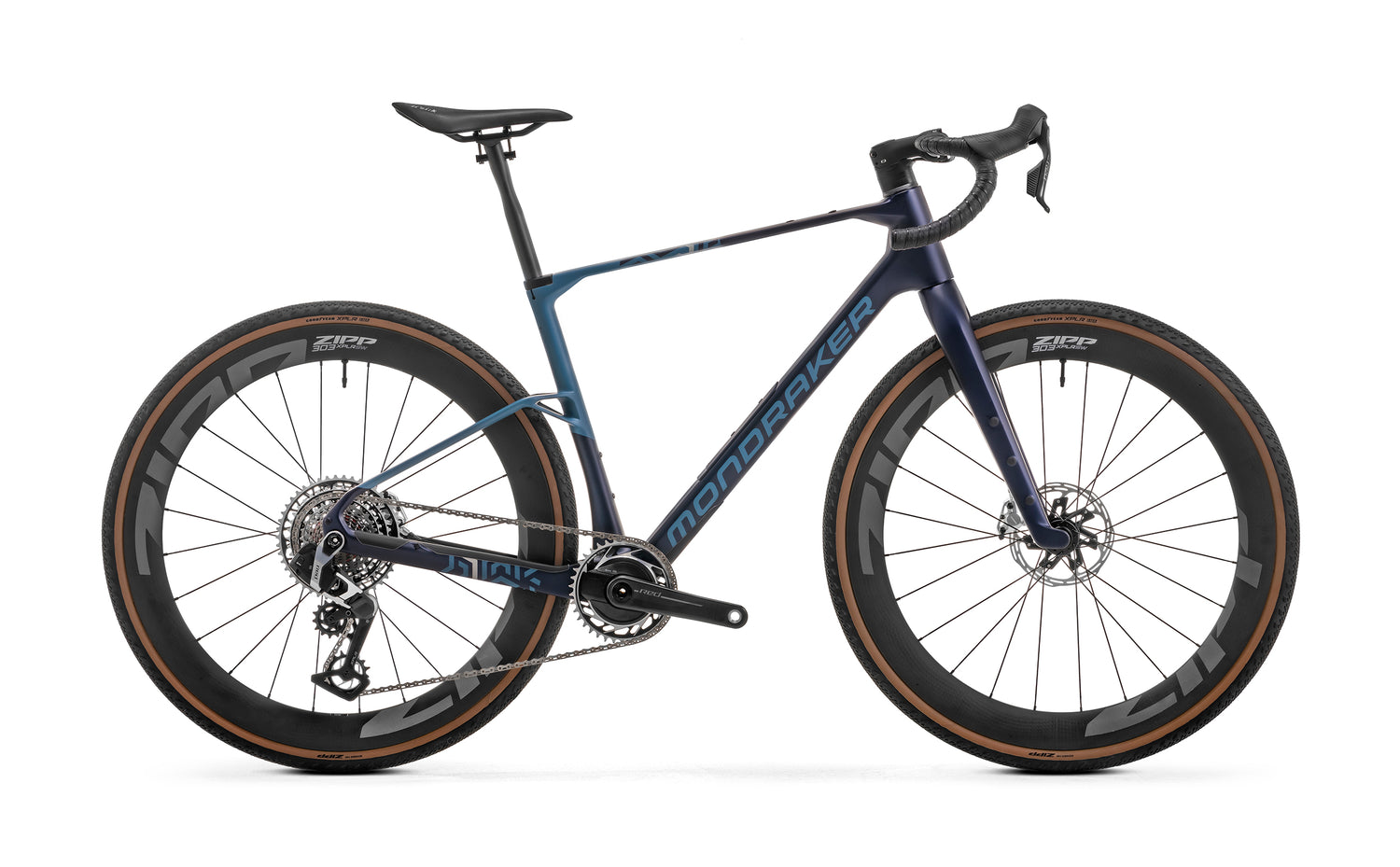

MONDRAKER 2025 ARID CARBON RR SL
$13,999.00
Unit price
/
Unavailable
MONDRAKER 2025 ARID CARBON RR SL - S / Blue/Blue is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Local Delivery Available
Local Delivery Available
Yarra Valley Cycles offer Local delivery within 20km. Some Fees apply.
Postage & Shipping - Free on "most" small parcel orders over $200
Postage & Shipping - Free on "most" small parcel orders over $200
YVC offers Free Shipping on most small items online when your spend over $200. Large & Bulky items may attract shipping fee. Calculated at Checkout.
Description
Description
-
Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar
OnOff S9 GR CARBON 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
Grips
OnOff HEX Bartape
Seatpost
Onoff S9 Carbon 15-R,15mm offset, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Saddle
FIZIK Vento Argo 00 140mm
Front brake
Sram RED AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Rear brake
Sram RED AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake lever
Sram RED, contact point adjustment, tooled reach adjust, carbon levers
Rims
Zipp 303 XPLR SW, 32mm internal width,54mm rim depth, hookless, infinity hubs, 24 spokes
Spokes
CX-Ray - Black
-
Front hub
ZR1 Disc Brake, 12x100mm,Centerlock
Rear hub
ZR1 Disc Brake, 12x142mm, XDR 6 Pawls, Compression Springs, Centerlock. XD Freehub
Front tire
Goodyear XPLR Inter 700x45
Rear tire
Goodyear XPLR Inter 700x45
Crankset
Sram RED XPLR carbon, Power meter, DUB axle, thread-mount chainring, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
Rings
Sram 40T Thread Mount, alloy, narrow-wide,
Bottom bracket
Sram DUB T47 BSA, sealed bearings, 85,5mm
Chain
Sram RED, 13s, Powerlock
Rear derrailleur
Sram RED XPLR AXS, Magic wheel, cage lock, 1x13s,
Shift levers
Sram RED XPLR AXS, Magic wheel, cage lock, 1x13s,
Casette
Sram XG-1391, 10-46T, 13s
Others
Carry-On Bags System
Weight
7,9 kg
