Frame
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
Loading...
Mondraker | SKU:
01025AU140
Enquire Now
Enquire Now
Enquire Now
Enquire Now
Enquire Now

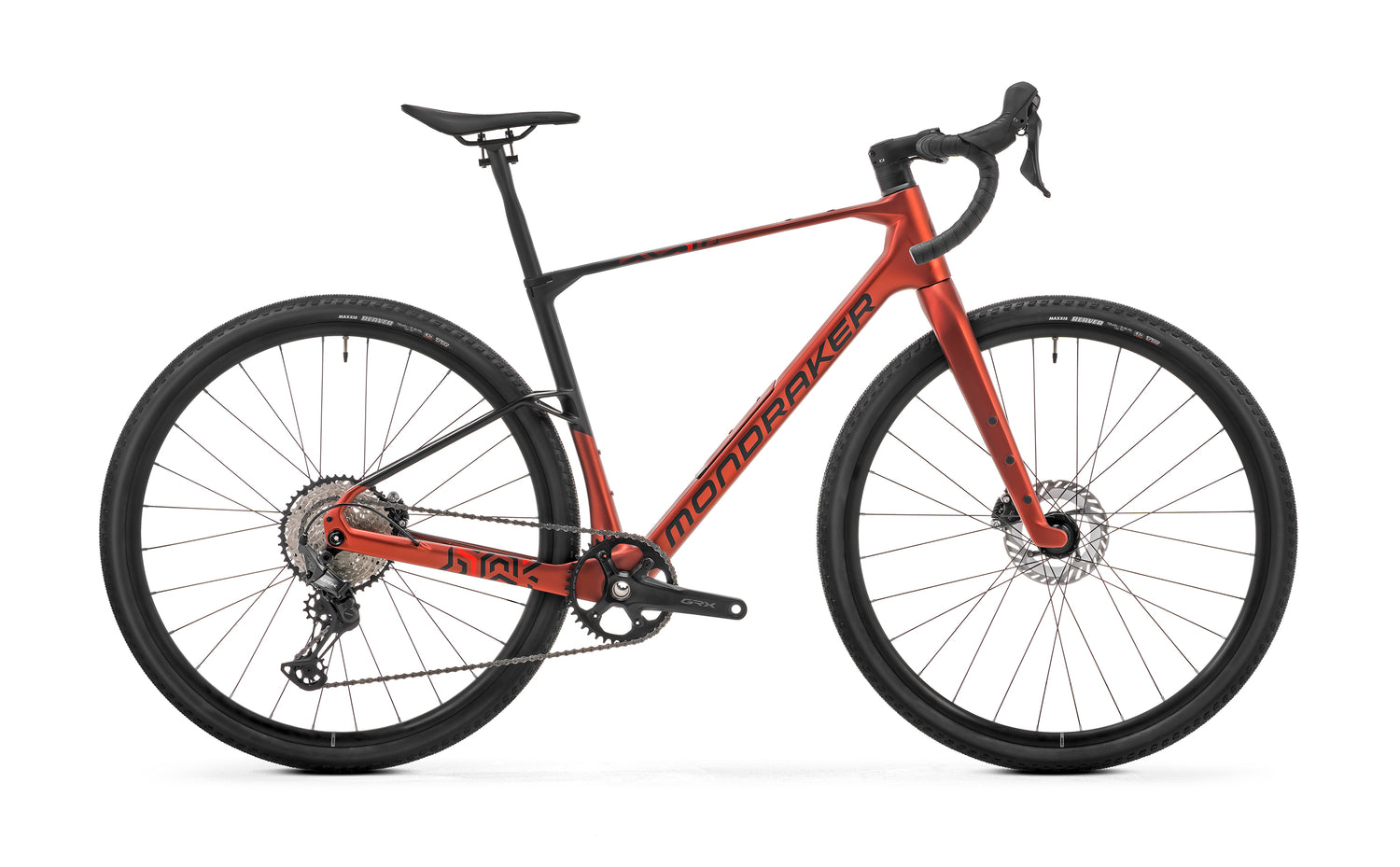

MONDRAKER 2025 ARID CARBON
$5,499.00
Unit price
/
Unavailable
MONDRAKER 2025 ARID CARBON - S / Red/Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Local Delivery Available
Local Delivery Available
Yarra Valley Cycles offer Local delivery within 20km. Some Fees apply.
Postage & Shipping - Free on "most" small parcel orders over $200
Postage & Shipping - Free on "most" small parcel orders over $200
YVC offers Free Shipping on most small items online when your spend over $200. Large & Bulky items may attract shipping fee. Calculated at Checkout.
Description
Description
-
Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar
OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
Grips
OnOff HEX Bartape
Seatpost
Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
Saddle
FIZIK Terra Argo X5 140mm
Front brake
Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Rear brake
Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Brake lever
Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever.
Rims
Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Spokes
Mavic Steel double butted flat spokes
-
Front hub
Mavic, 12x100mm, IS 6 bolts
Rear hub
Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub
Front tire
Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire
Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset
Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7
Rings
Shimano 40T, direct mount, steel
Bottom bracket
Token T47 BSA sealed bearings, 85,5mm
Chain
Shimano SLX M7100, Quick link
Rear derrailleur
Shimano GRX RX-822-GS, 12s
Shift levers
Shimano GRX RX-610 dual control, alloy lever
Casette
Shimano SLX M7100, hiperglide+,10-45, 12s
Derailleur hanger
Sram UDH
Others
Carry-On Bags System
Weight
9,7 kg
